Description
Manufacturer: Aigean Networks
Model Number: AN1809050
Condition: New
Additional Notes: This listing is for an Aigean Networks AN1809050 Link7-SS Dual Band Marine Wifi Compact Wireless Client *NEW*

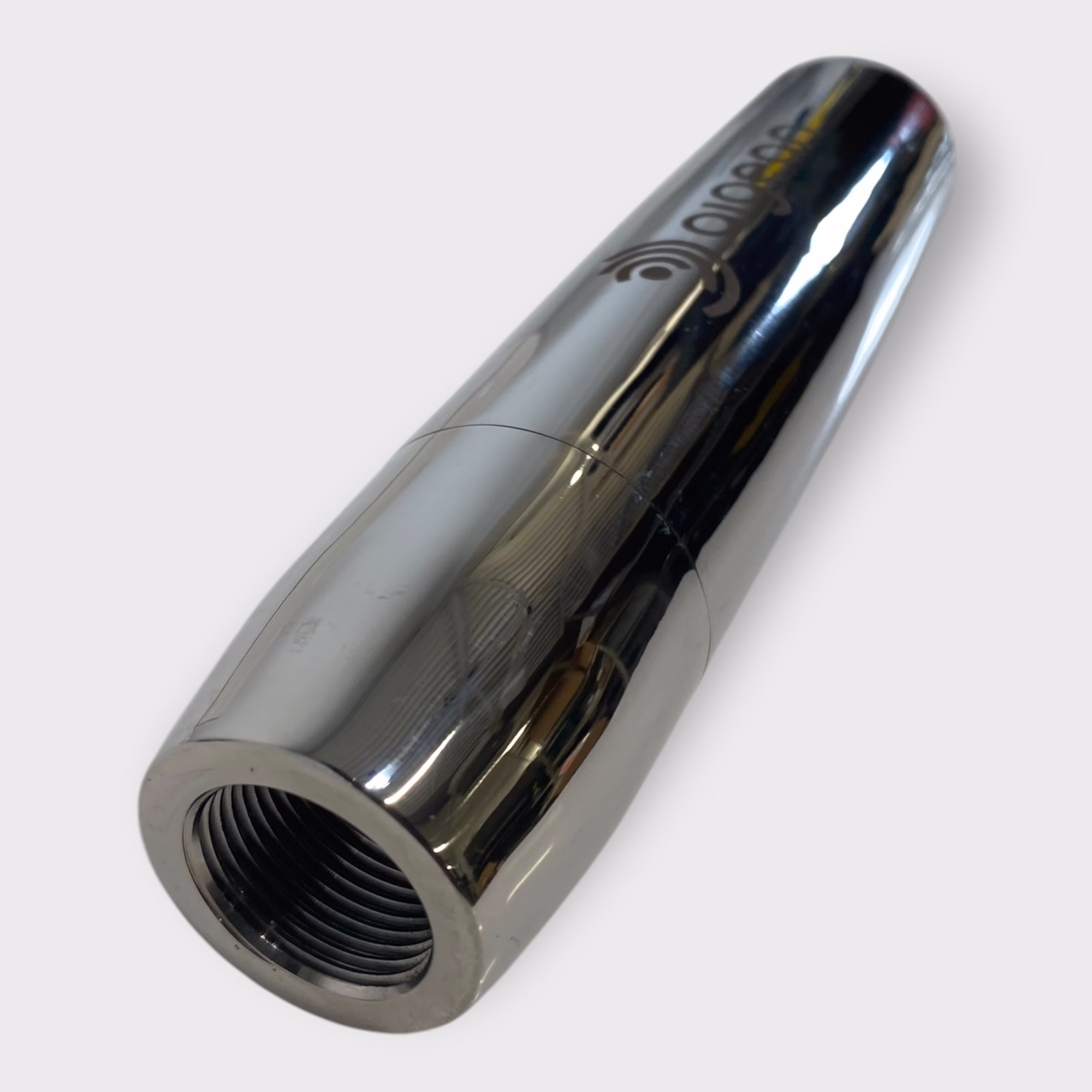

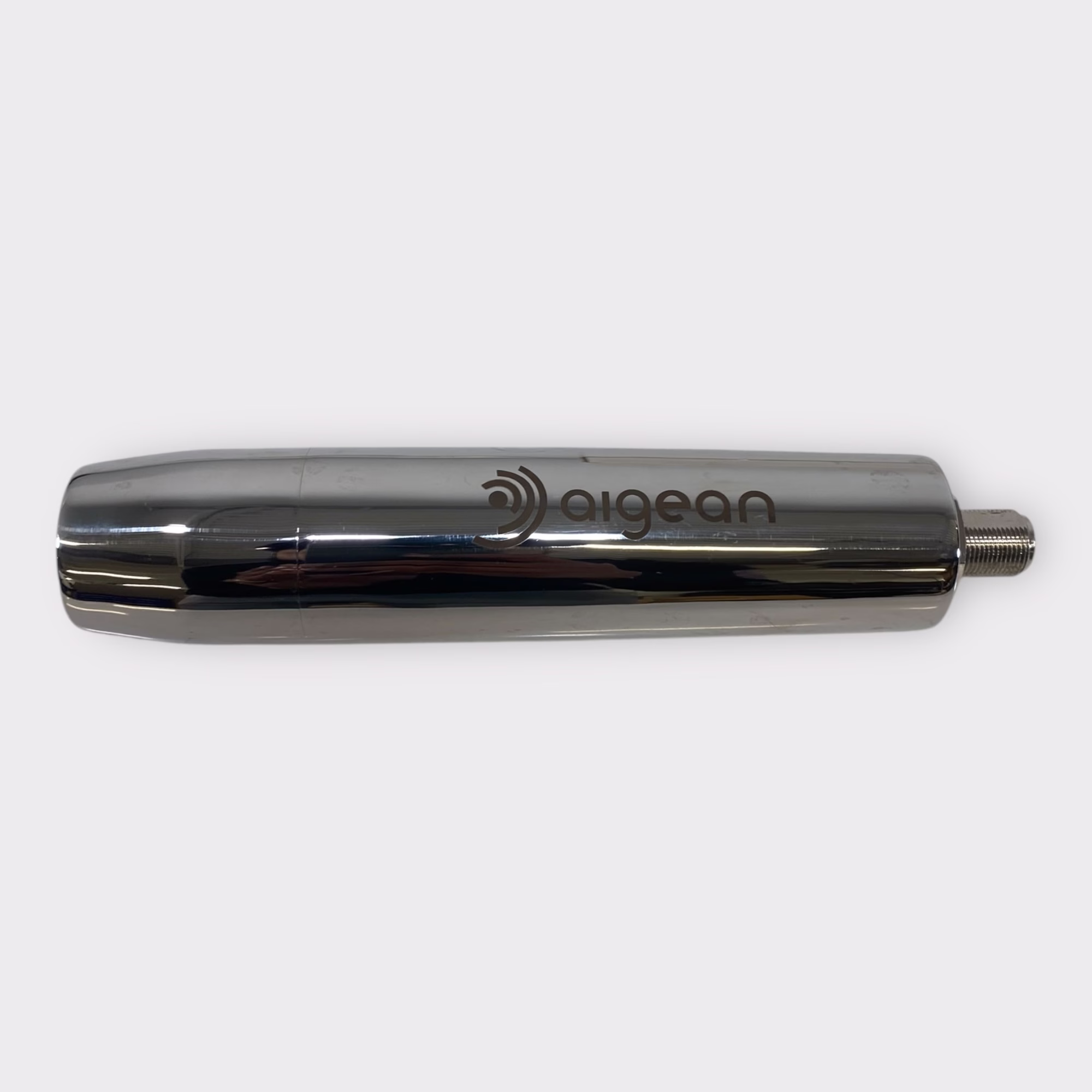

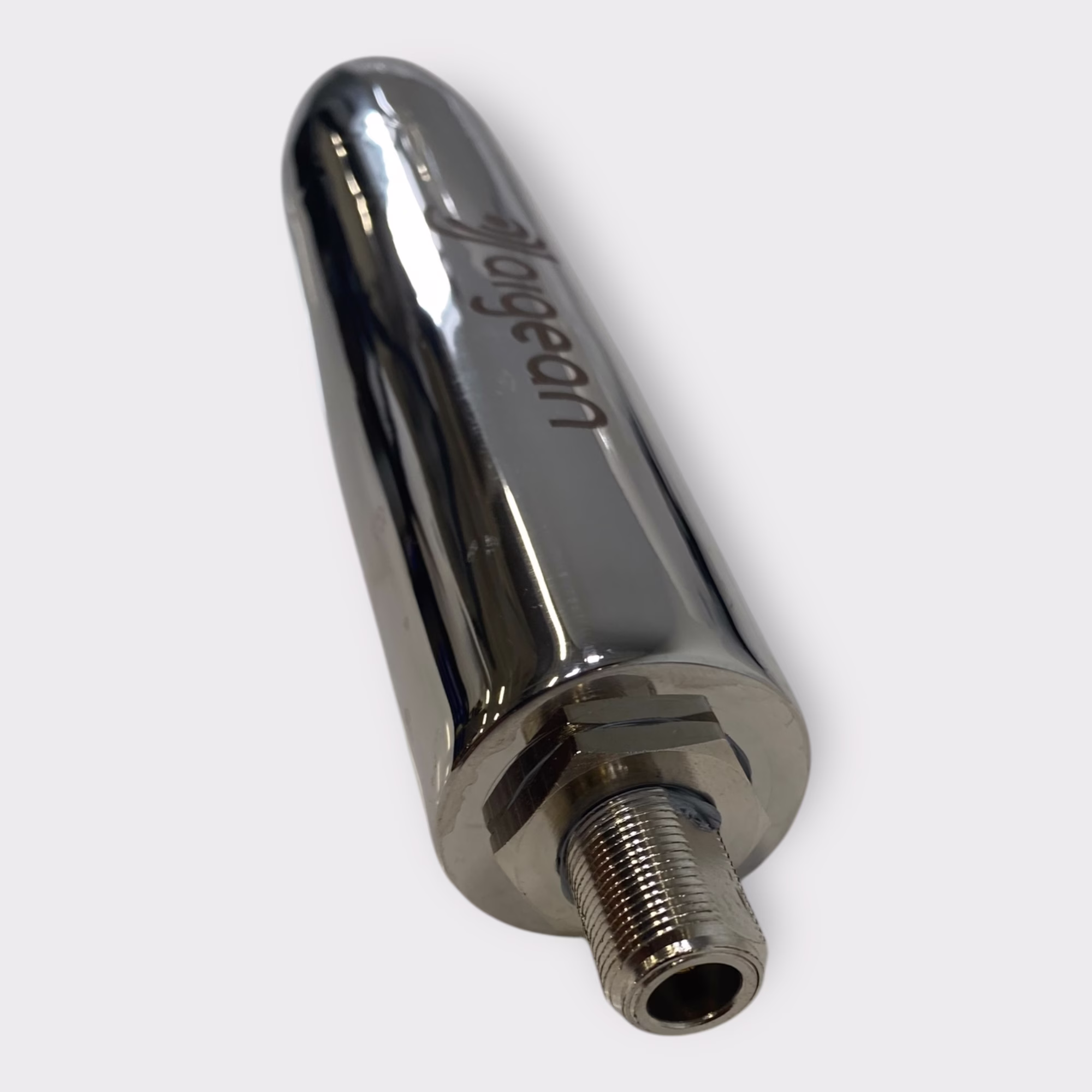

The Aigean LINK7-SS is a compact wireless client shrouded in a weatherproof, stainless steel enclosure that secures directly to any standard 1″-14 marine antenna mount.
The LINK7-SS features complete dual band (2.4 and 5 GHz) connectivity over a single, unified radio and antenna configuration. As with all devices in the LINK family, the LINK7-SS significantly improves signal strength and quality versus traditional mobile devices (laptops, phones, tablets, etc.) when connecting to shore-based networks, such as those at marinas, hotels, homes, and businesses.
Designed primarily for smaller boats or RVs, the LINK Series offers great performance in a compact, weatherproof, and cost-effective package.
Specifications:
| System Information | ||
|---|---|---|
| Processor Specs | Atheros MIPS 74Kc, 600MHz | |
| Memory Information | 64MB SDRAM, 16MB Flash | |
| Networking Interface | 1 x 10/100 BASE-TX (Cat 5, RJ-45) Fast Ethernet | |
| Radio (2.4 & 5 GHz) | ||
| Protocol(s) | 802.11a/b/g/n Wi-Fi | |
| Tx Power | ≤27 dBm (500 mW) | |
| Rx Sensitivity | minimum -97 dBm | |
| Physical / Electrical / Environmental | ||
| RF Connector | N-type Female Jack | |
| Enclosure Size | 8″ x 1.5″ x 1.5″ (203mm x 38mm x 38mm) | |
| Weight | 2.1 lbs (0.95kg) | |
| Enclosure Characteristics | Hard Anodized Aluminum | |
| Power Rating | 9V – 30V | |
| Power Method | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) | |
| Operating Temperature | -22°F to 167°F (-30°C to 75°C) | |
| Operating Humidity | 5 to 95% Condensing | |
| Shock and Vibration | ETSI300-019-1.4 | |
| Environment Resistance | IP65 (NEMA 4) | |

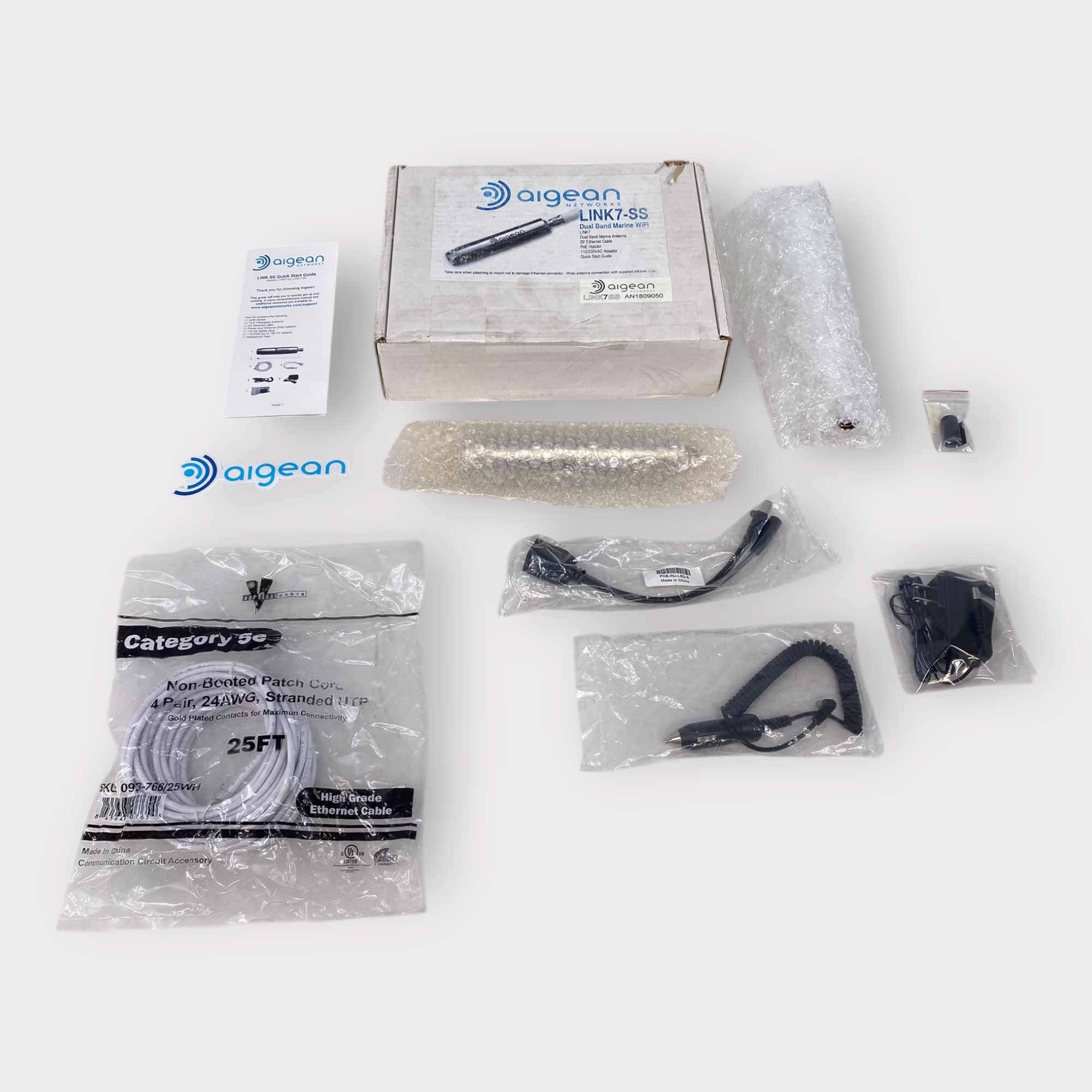

What’s Included:
- Link 7 Device Stainless Steel

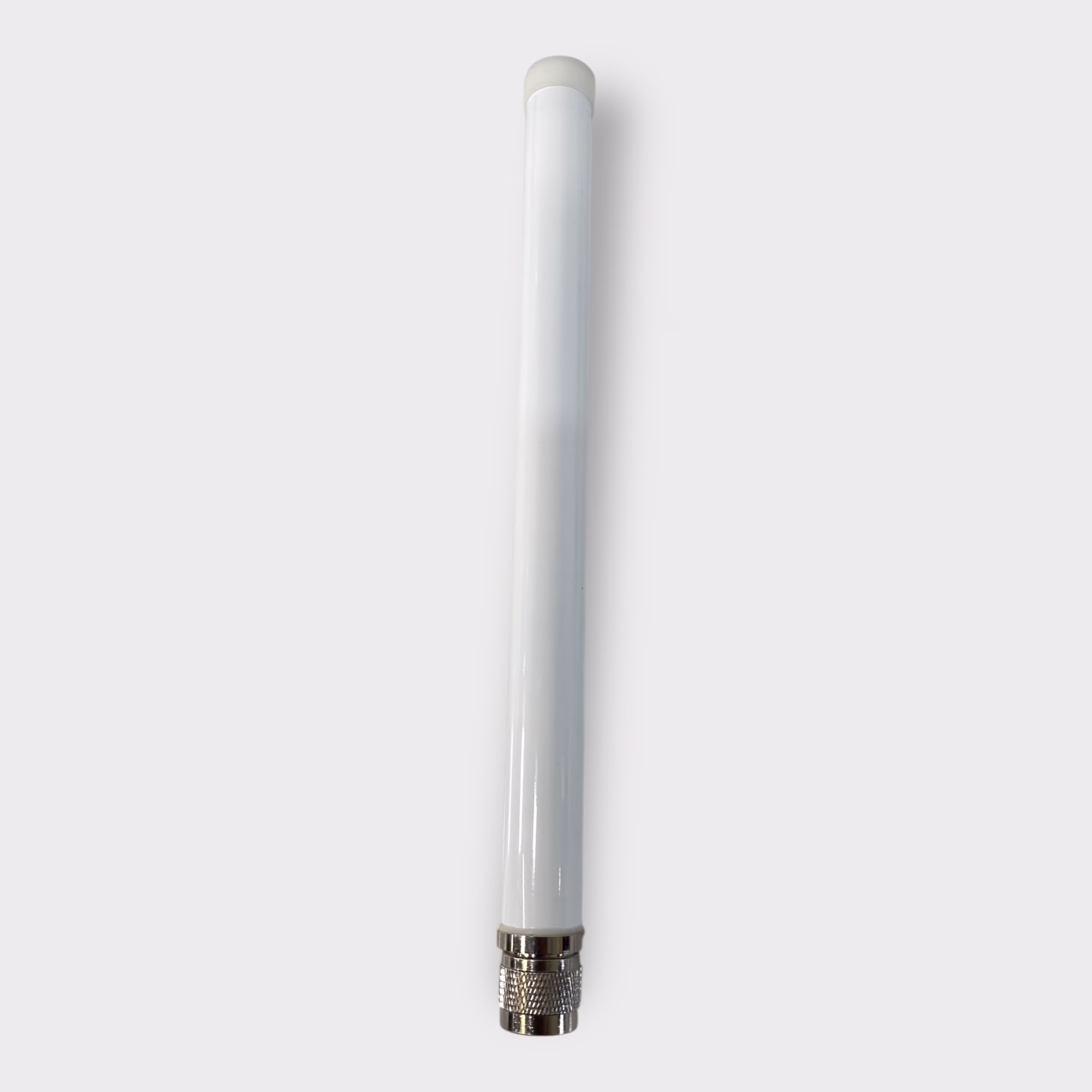

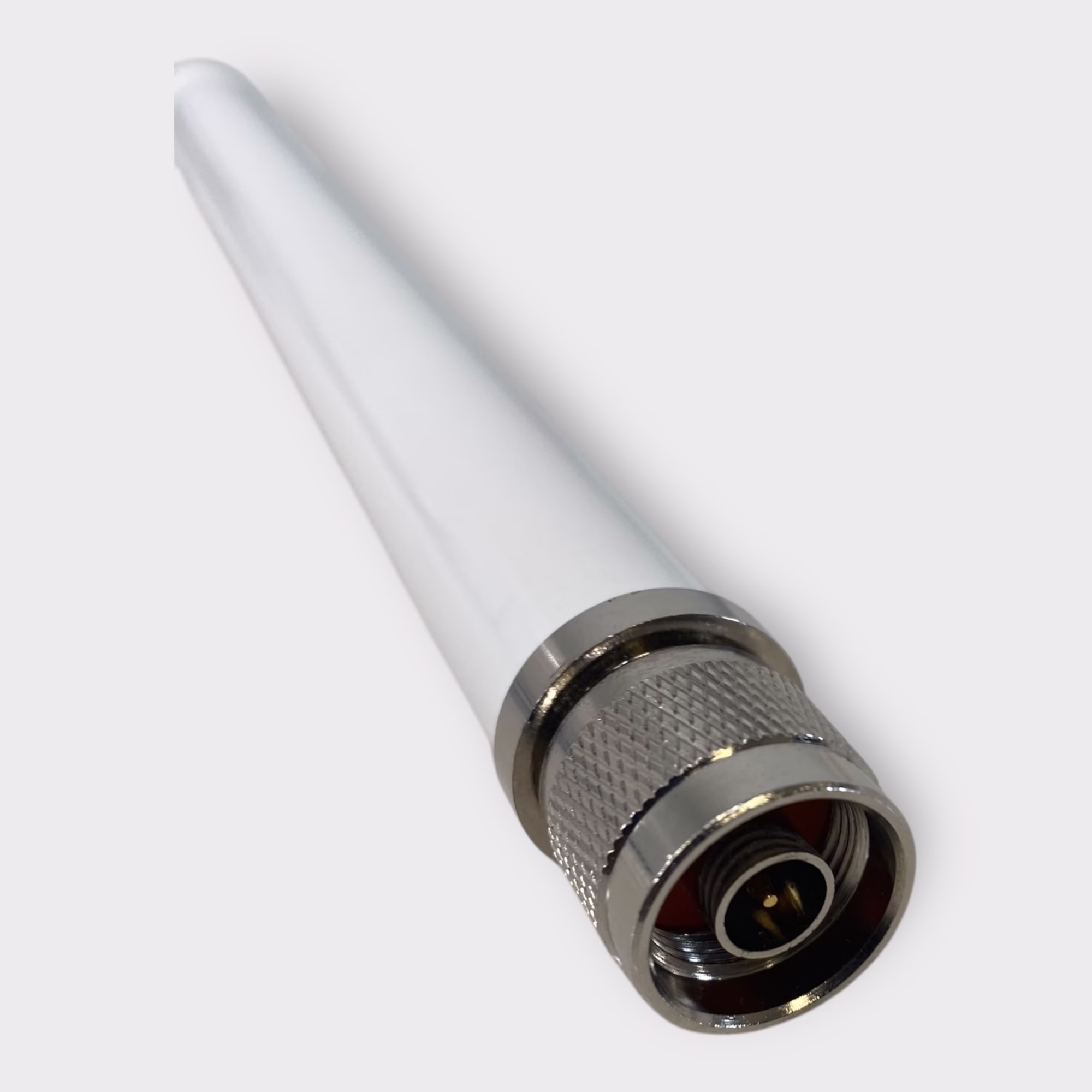

- 10.5″ Fiberglass Dual-Band Marine Antenna
- 25′ Ethernet Cable
- PoE Injector
- 110/220VAC Adaptor
- Quick Start Guide
Dimensions (L x W x H): 9 x 3 x 12 in, Weight: 3.5lbs.
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
