Description
Manufacturer: Raymarine
Model: 12kW Super HD Digital
Series: Super HD Color Digital Open Array
MPN: E52082
Listed Item Condition: Used

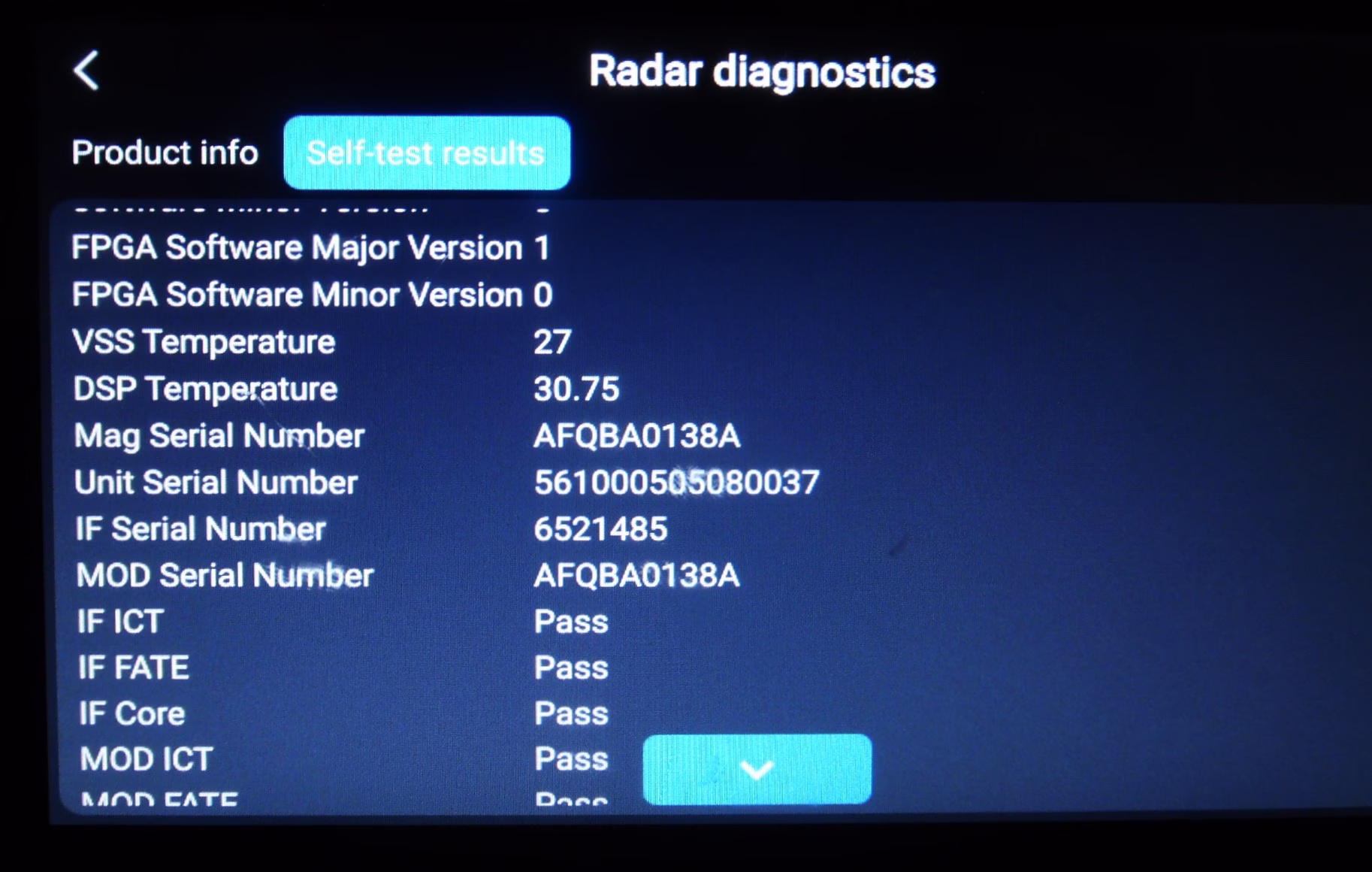

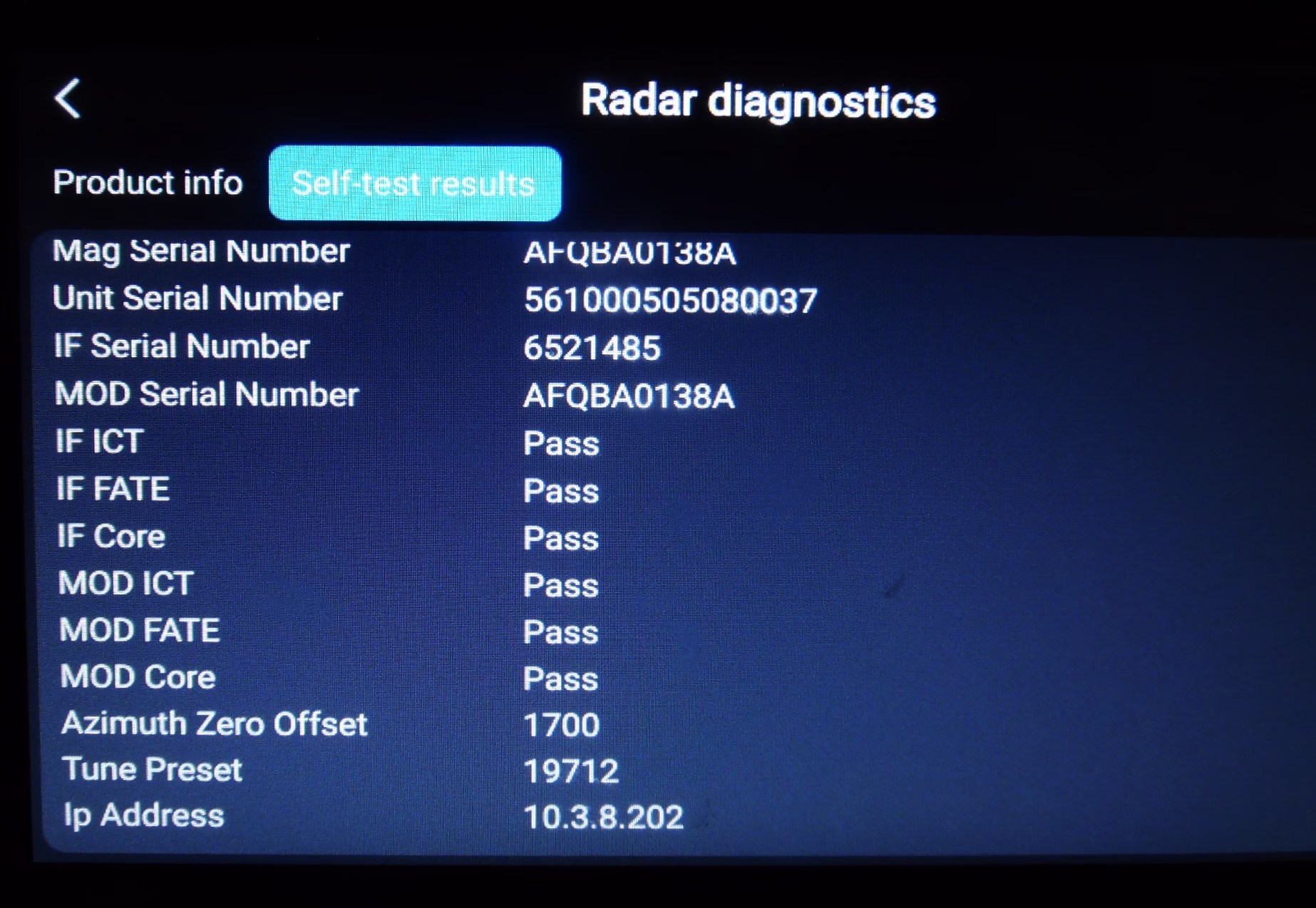

Additional Notes: This radar system, including the VCM100, is in excellent working condition as we successfully bench-tested the system and confirmed functionality via an MFD (not included). Great target detection at all ranges and every self-test passed!
Magnetron Heater Hour Count: 2,126.3!
**This is the NON-Enhanced version of the HD Radar and does NOT feature Bird Mode when connected to a Widescreen or newer model display.**
The radar port has no bent pins or any corrosion, and the switch boot cover is not compromised, functioning properly!
*There are no decals on the Pedestal or Antenna Array. However, the plastics are clean, and the unit has been previously powder-coated. The coating is still in pristine shape with no paint chipping or major blemishes.*
A NEW 10m radar cable is included! Most used cables have a common failure point found where it connects to the radar port, and the strain relief deteriorates, exposing the wires to moisture, which can then cause premature failure of the radar/cable or possibly an electrical short.

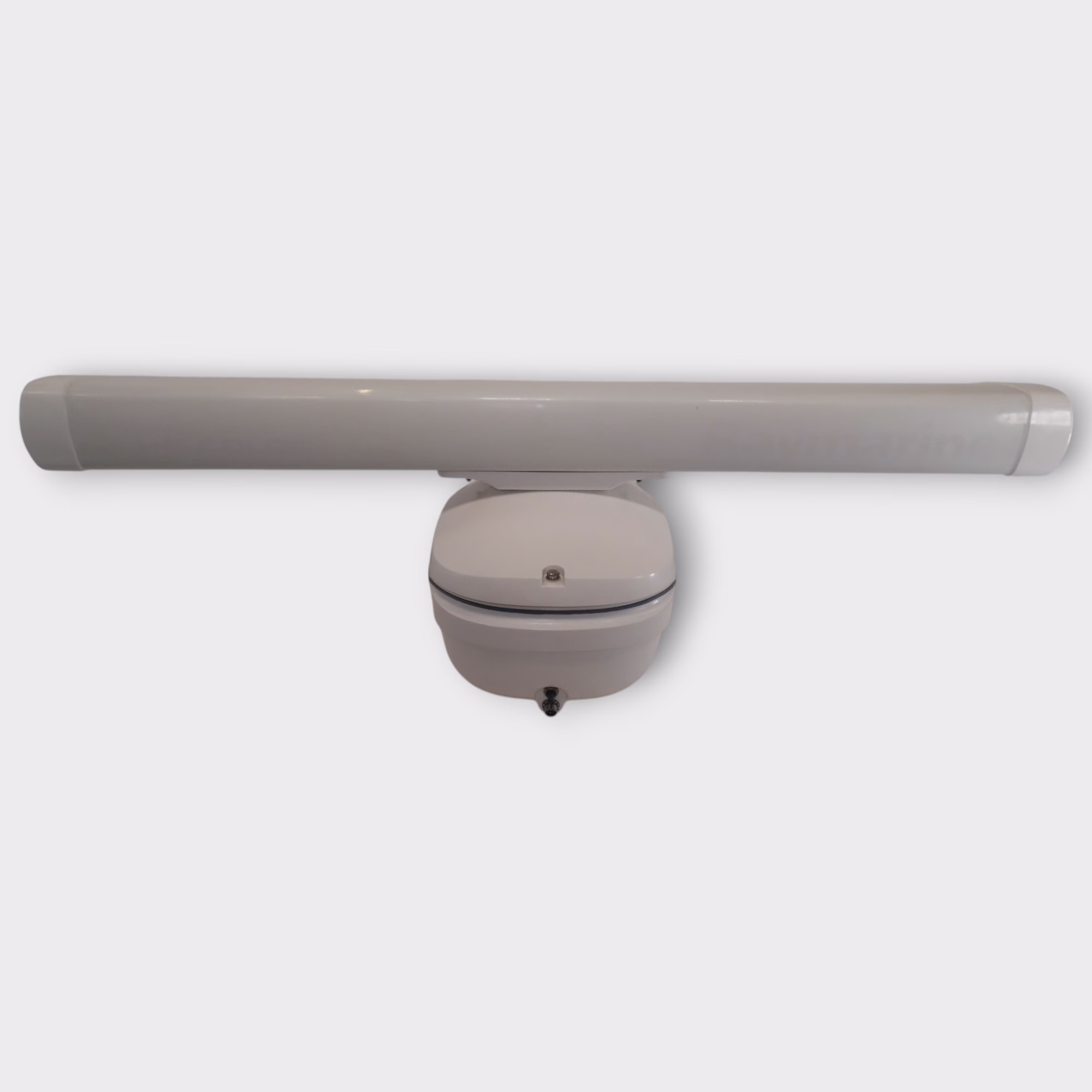

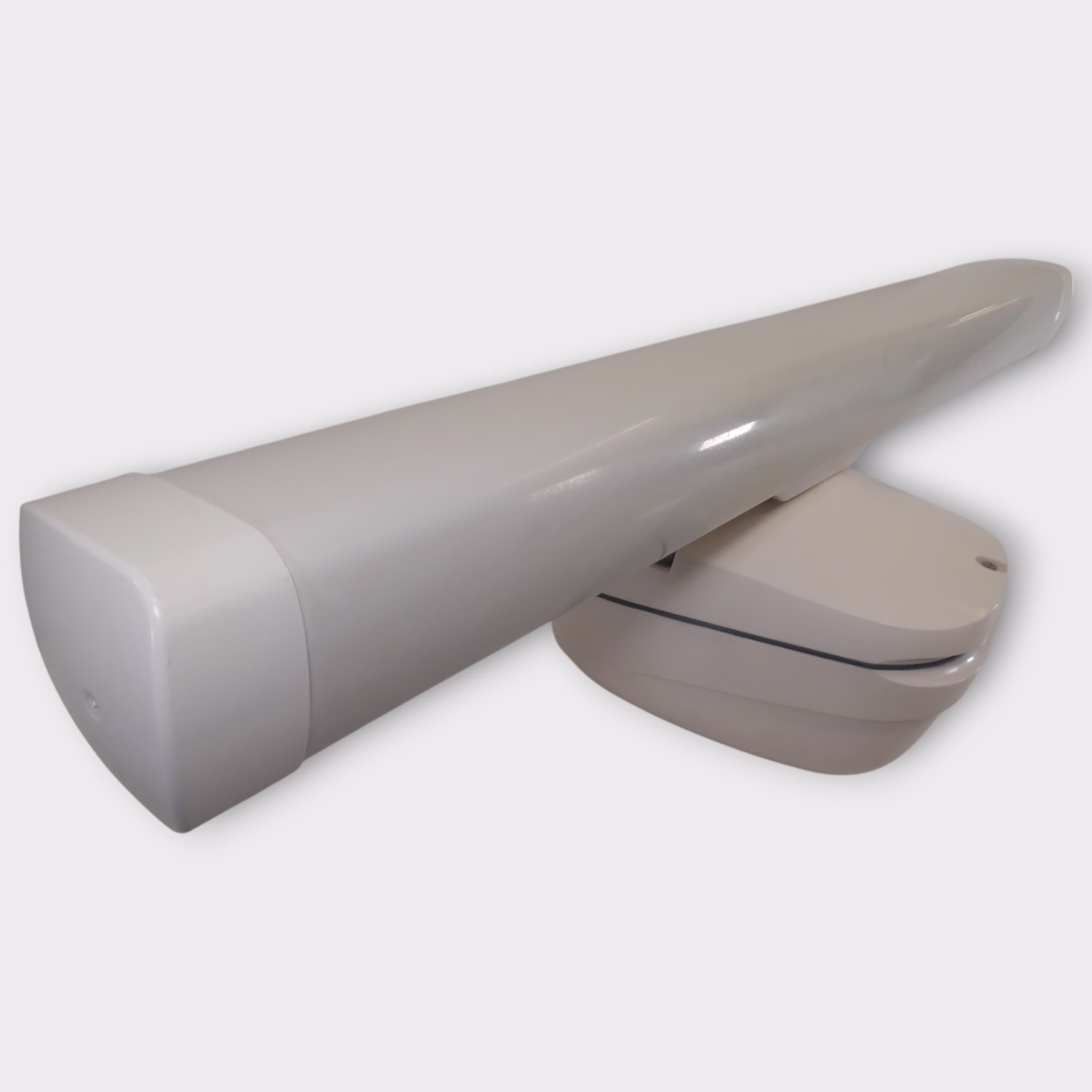

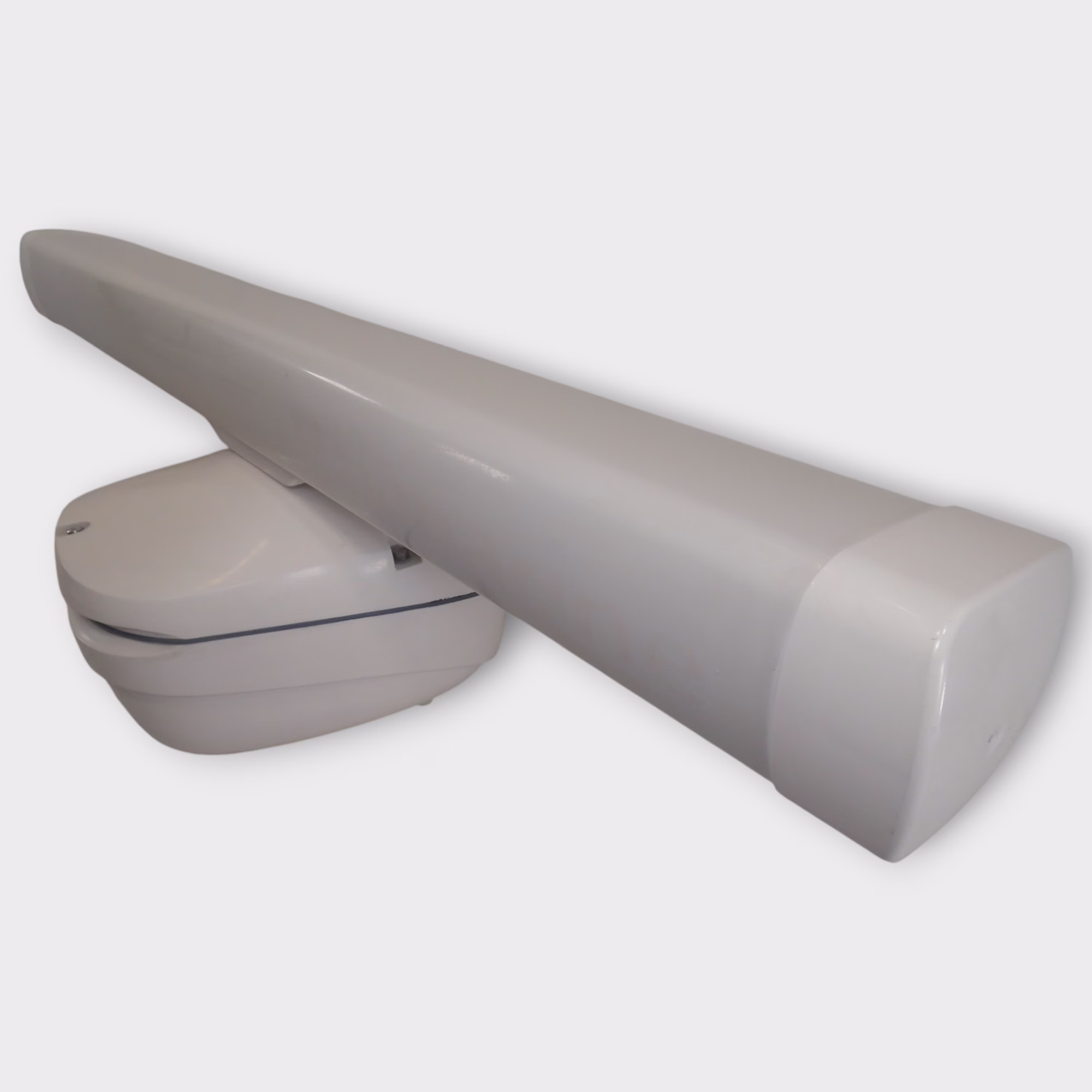

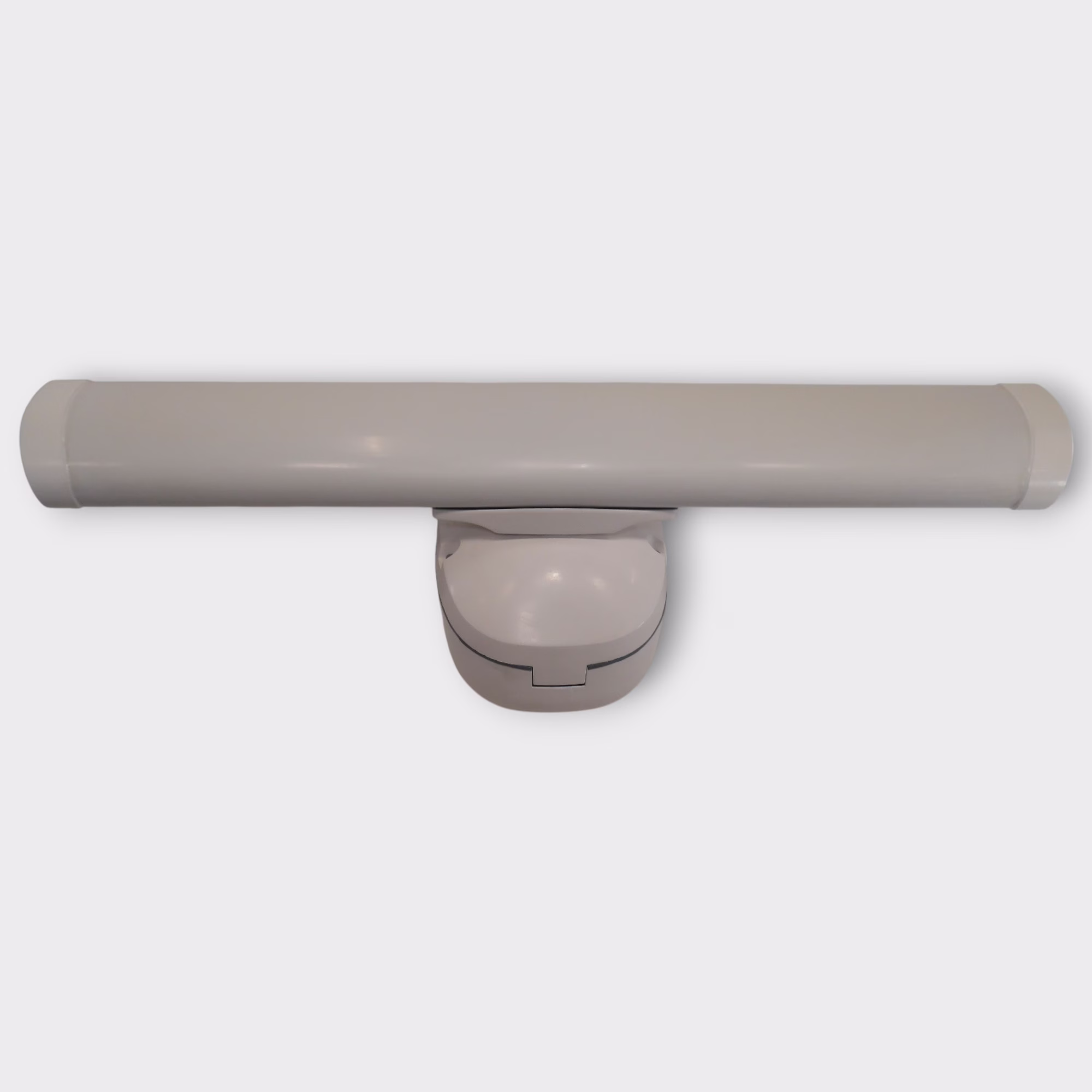

This radar system comes with a 48″ (4 ft.) antenna array with the end caps resealed during our detailing process. If this array is too small, we may have a 6 ft. antenna array available. The included radar cable is 10m in length. If you need a different length radar cable, we may have a 15m or 5m available. Please reach out to us directly to inquire about a smaller antenna array or a different-length radar cable.
All included hardware has been run through a wire wheel and is clean for quick and easy installation.

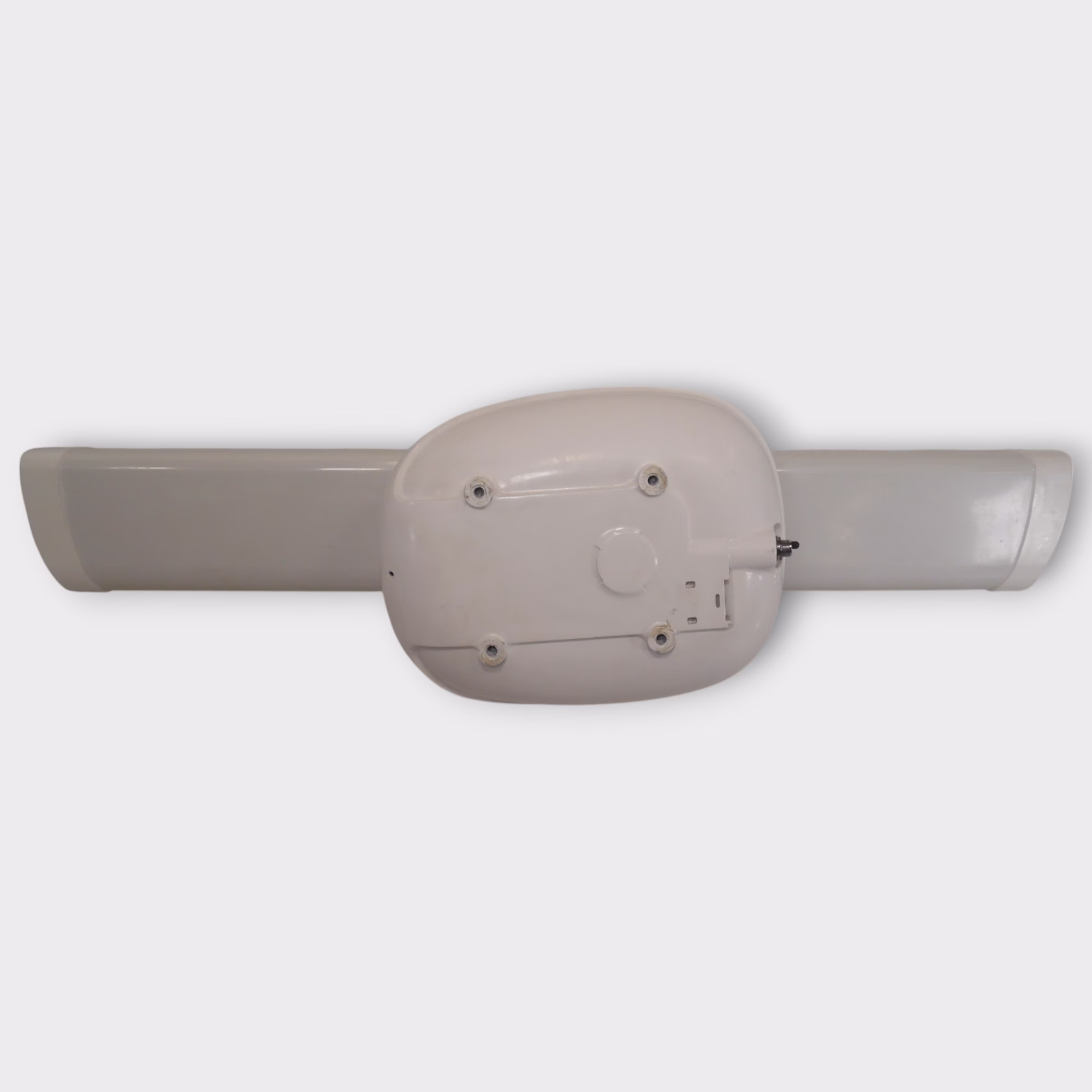

Please reference our photos for the condition, contents, and proof of functionality!
What’s Included:
- Raymarine 12kW Super HD Digital Pedestal E52082
- 48″ SuperHD Digital Antenna Array
- 10m Digital Radar Cable with RayNet connection *NEW*
- VCM100 (for regulating power going to the radar)
- Mounting Hardware (x4) – M10 Stainless Steel Studs, M10, Plain Washers, M10 Spring Washers, and M10 Nuts
Compatible Parts: This is FULLY compatible with the E series Classic (i.e. E120, E80) displays, C & E Series Wide Displays (i.e. C90w, E140w), c & eSeries displays (i.e. e127, c95) as well as the newest generation of Axiom displays. Depending on the display on the vessel, additional cabling or cable adapters may be required for installation. These can be purchased through our online store.
Dimensions (L x W x H): 50 x 30 x 30 in, Weight: 80 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
Terms:
All items sold at Max Marine Electronics come as you see in the pictures provided, with only the parts and accessories stated in the description section named “What’s Included”. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE DESCRIPTION WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times when a display is used only to show the item being sold is functional and working properly. In this case, these displays are not included. If you have any questions feel free to send a message or call Max Marine Electronics Inc, Pompano Beach, Florida. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.
