Niles SPK-1 Speaker Level A-B Switcher 12V-Triggered – Used – Free Shipping
This item was acquired from a marine warehouse that was liquidating excess inventory.
This item is Used.
This item is in good cosmetic condition.
This item may have some signs of wear from previous use/storage. This does not affect the functionality of the item. Please see the photos for the exact item condition.
This item was bench tested and all normal functions were working correctly at the time of testing.
Product Description

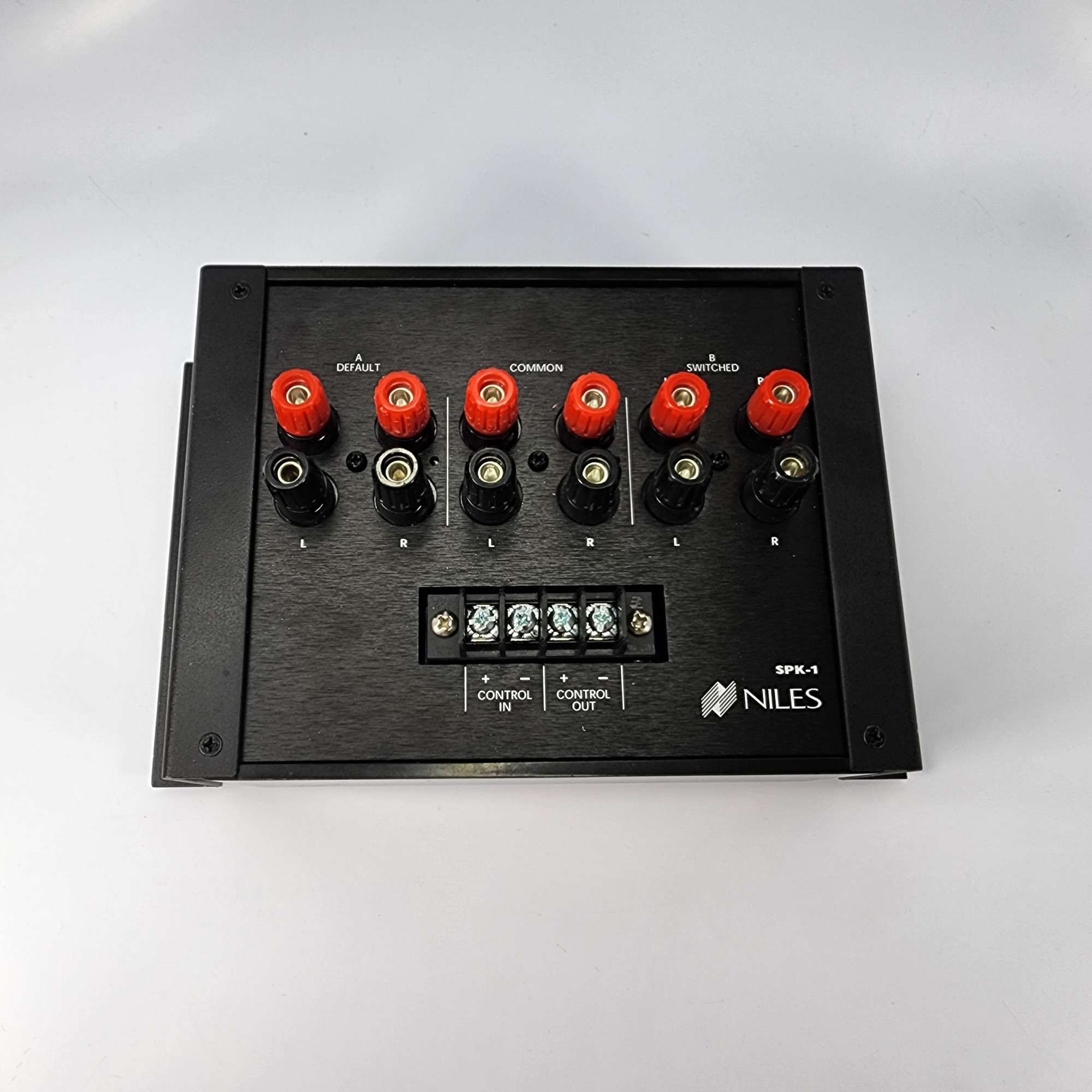

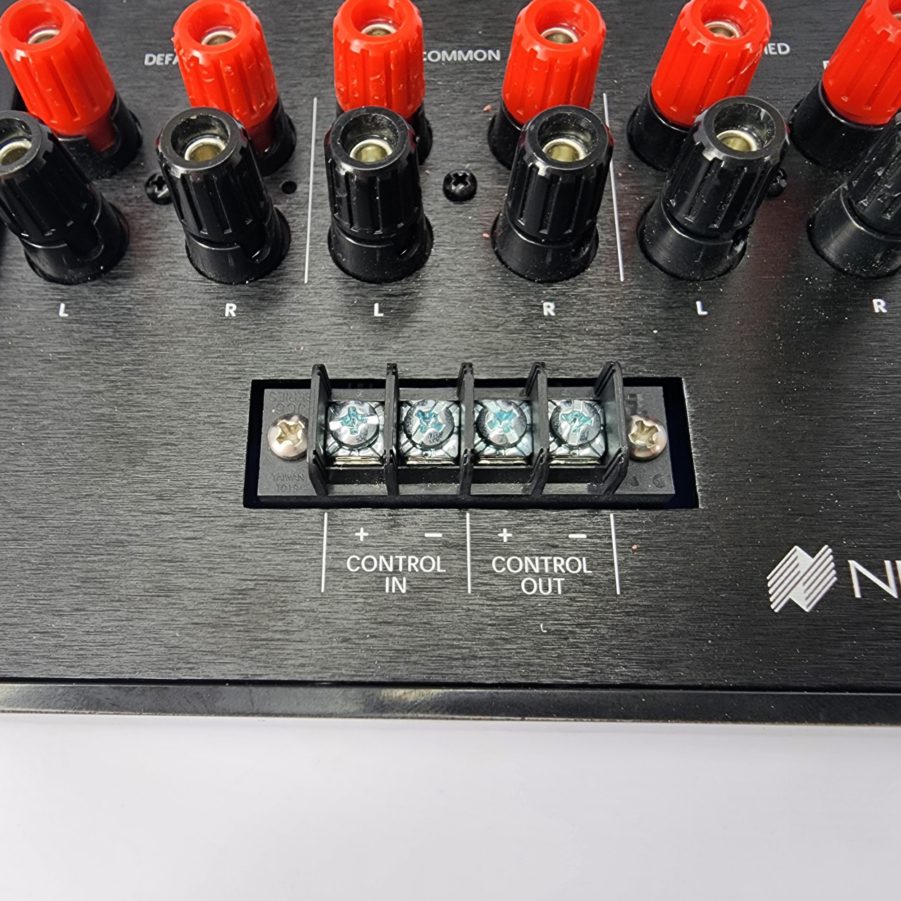

The Niles SPK-1 Speaker-Level A-B Switcher is a two channel, speaker level A-B switch. The SPK-1 can be used to switch amplifiers, speakers, surround sound systems, or any application where a voltage-activated speaker-level switch is preferred. Applying 12 volts DC to the control input connector activates the switch. A control output connector is also provided. The control output is internally connected in parallel with the SPK-1’s control input. The control output can be used to control additional SPK-1’s by ‘daisy-chaining’ the control output of one unit to the control input of the next. Connecting two SPK-1’s together enables you to switch four channels of speaker-level signals and connecting three units together lets you switch six channels, and so on. A maximum of 6 SPK-1’s may be connected together in this manner. The control output can also be used to connect other Niles switching devices such as the AC-3 Voltage Activated AC outlet and the AVS-2 Voltage Activated Line-Level Switch. Please Note: This unit is not a Signal-Sensing Switcher; if signal-sensing is required use the SAS-1 or ABS-1, each sold separately.
- Replaces Manually Operated A-B Switches
- Audio Power Handling: 600W Per Channel
- SPK-1 Is Activated By 12Volt DC Signal (100mA Minimum)

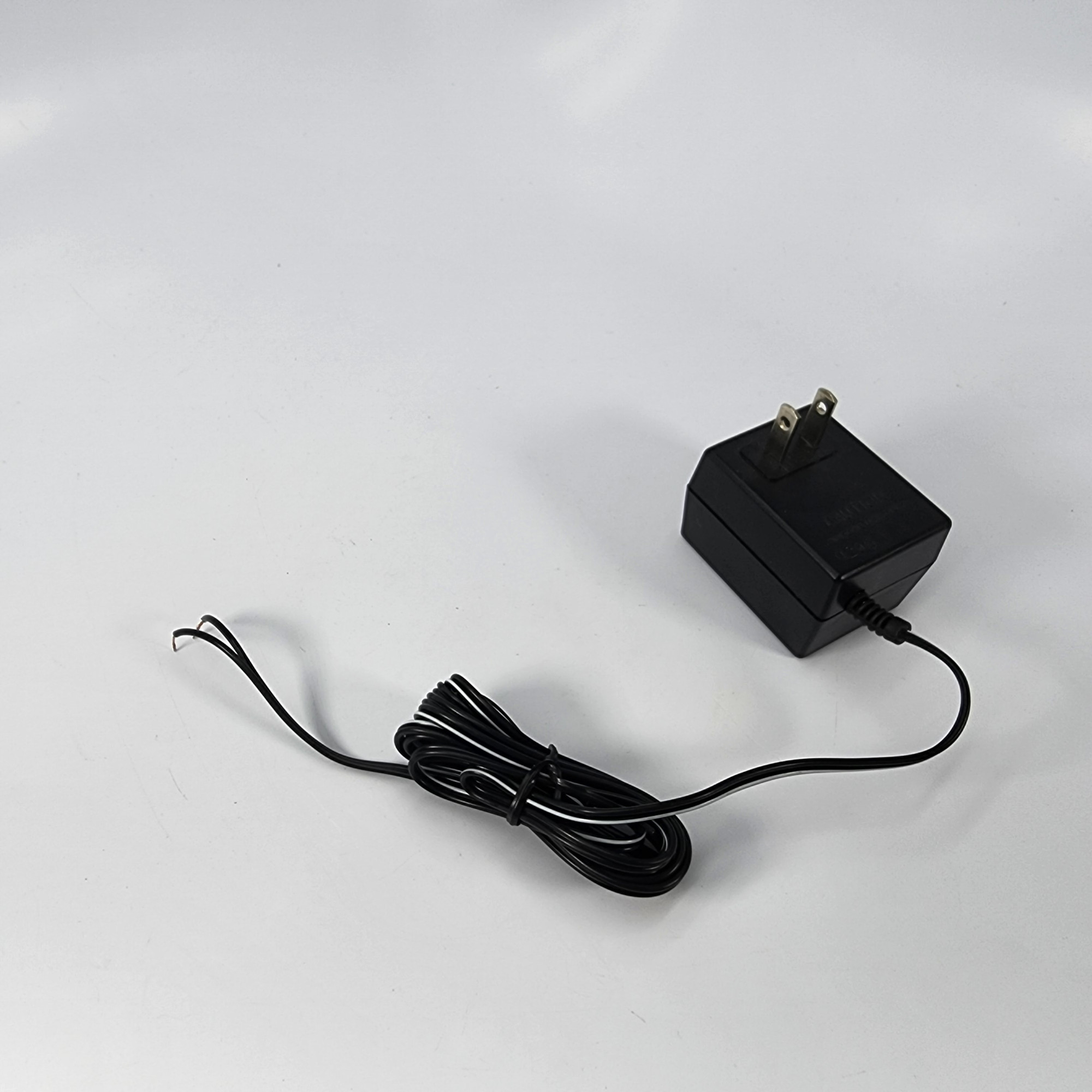

- Requires 12Volt DC Adapter To Trigger SPK-1 From The Switched Outlet Of A Receiver Or Preamp, Can Also Be Triggered By The 12volt Output Of A Niles APC-2, AC-3, AVS-2, SAS-1 Or RFS-1
- 12Volt Control Output For Activating Other Niles Devices Such As An APC-2, AC-3, AVS-2, SAS-1 Or RFS-1
- Not A Signal-Sensing Switcher; If Signal-sensing Is Required Use The SAS-1 Or ABS-1
- Premium Nickel-plated Five-way Binding Post Connectors
- Dimensions: 6-13/16″ Wide X 3-1/8″ High X 5-5/16″ Deep
This listing includes:

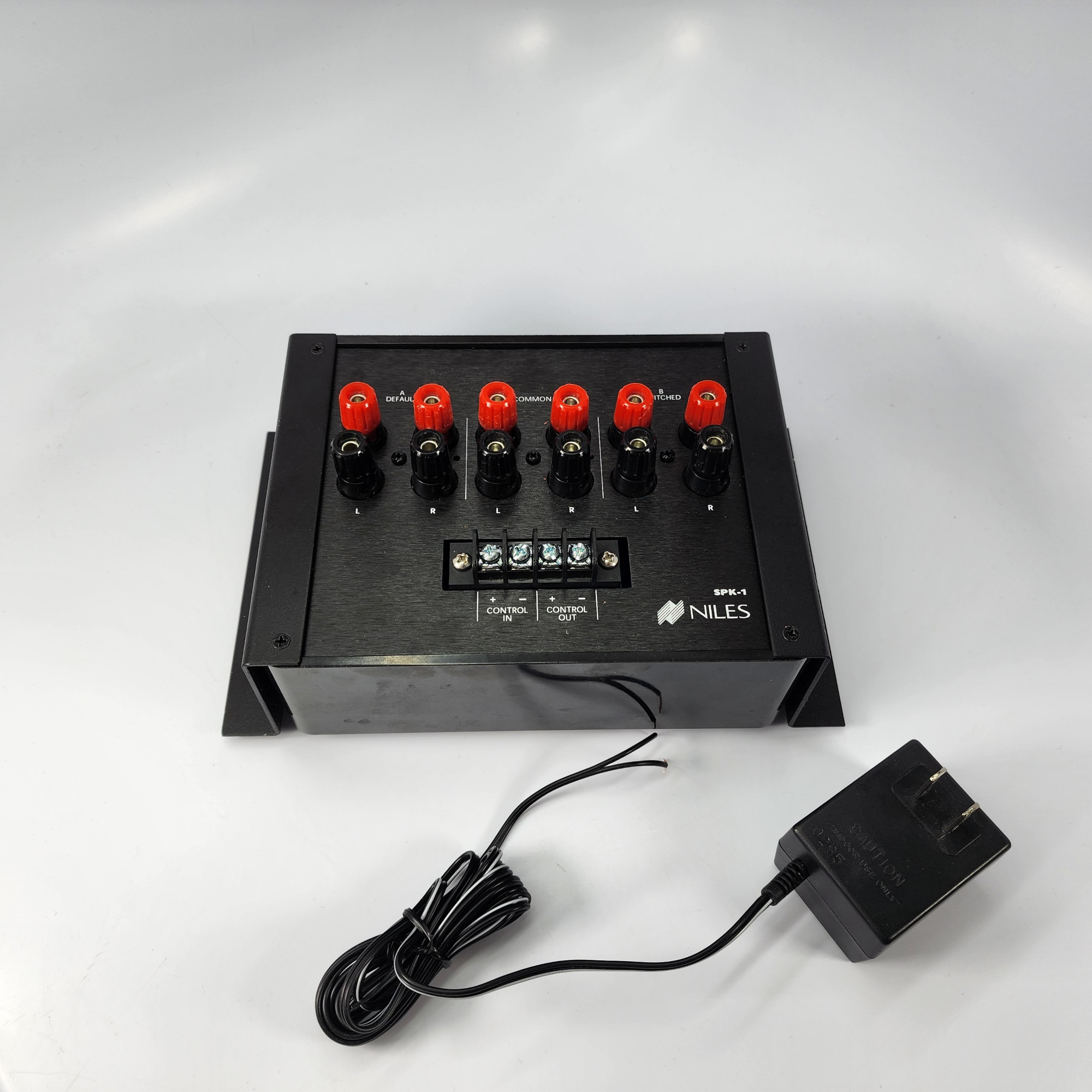

- Niles SPK-1 Speaker Level A-B Switcher 12V-Triggered
This item comes as shown, nothing else is included. See Photos.
30-day returns, 90-day warranty through Max Marine Electronics.
Please refer to photos for item condition and sale contents.
*Free shipping to the contiguous 48 states of the US. Shipping destinations outside of the continental US will not be free. Please message us for a quote before purchasing an item if you are planning on shipping internationally.
Thanks for looking.
