Furuno FAR-2117BB/DC IMO Black Box Commercial 12kW Radar System Fully Tested

$3,599.99

Out of stock

SKU: 177791 Category:

Description

This radar system was fully tested on our bench. Overall, the system is in great condition as you can see in the pictures. This is the “DC” version, meant for 24V DC systems. All interfacing data ports have been tested and verified working. This system is ready for an AIS input to overlay AIS targets on the display for maximum safety at sea awareness.. Example in pictures..

This system does not include a monitor/ display, We have displays listed separately if you need one.

You can also use this system if you have an existing monitor that accepts a DVI input. (That minimally accepts XGA 1024×768 video resolution)

If you have a VGA monitor only, do not  worry!!

We have the FURUNO VGA option board available for a great price and would love to install it for you for a small fee!!

This unit does not have the WAGO installation tool

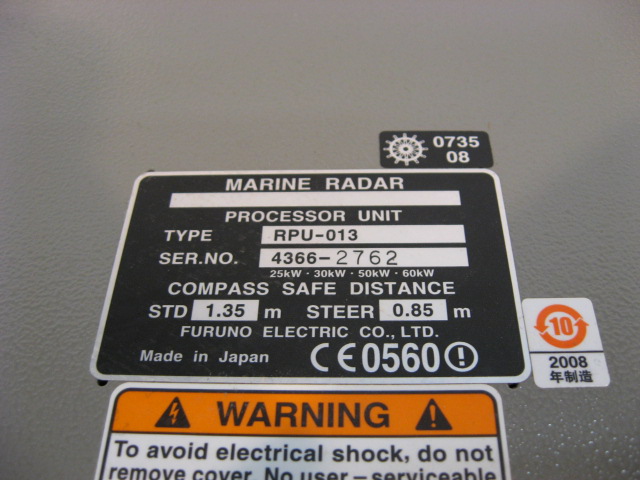

(RPU013)  Hours listed on this processor is marked at :

ON TIME : 2862.7 hours

TX TIME : 2008.7 Hours

The software version is 4.02.51



RTR-078 12 kW transceiver

The amount of hours on this Magnetron are unknown however it has been fully tested on our radar test set to verify that the Transmit frequency is within X- Band specs.

Output FREQ : 9399.6MHz

Power out TX : + 41.0dbm

Receive Sensitivity RX : -73.3dbm



the MAG in this unit  has good power out and is stable; with good receiver sensitivity. The Yellow spoke pattern that you see in the picture is a generated signal that is produced by the test to ensure the receiver is working properly.









THIS IS STILL A CURRENT PRODUCTION UNIT.

THIS LISTING INCLUDES :

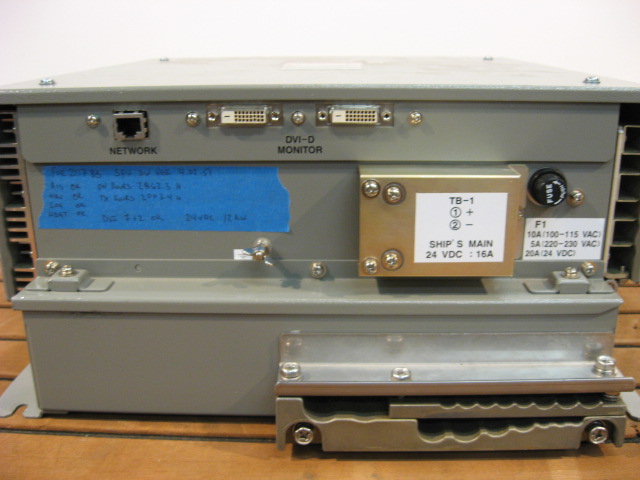

  • RPU-013 / (FAR-2127BB) -Radar Processor Unit (24Vdc) – Great condition
  • RCU-014 controller – in good condition with all keys fully functional with a fully restored trackball. (Controller cable 32ft)
  • RSB-0096 with RTR-078 – 12kW Commercial RADAR – Great condition with some scratches and minor gouges on one side.
  • XN20A – 6.5ft Radar Antenna – Great Condition with minor scratches and a heavy gouge on top center of antenna.
  • QTY : 4  12 x  60mm Radar Mounting Bolts
  • 1 Isolation mounting Mat for gear box
  • Interconnect Cable for Radar 43′ Long.  ******Please contact us if you need a longer cable and we will try to source one for you.

For full range of all functions this unit requires heading and speed from other on-board electronic sources!

Tried and True this is one of the BEST Furuno radars you can get your hands on. From commercial applications or sport fishing to safety at sea, this is the radar you want on your vessel.



Shipping will be free in the continental US, ALL OTHERS MUST MUST MUST MESSAGE FOR A QUOTE.

90 Days Warranty from date of receipt.
Thanks for looking.

Terms:

All items sold at Max Marine Electronics come as you see in the pictures provided, with ONLY the parts and accessories shown in the pictures. Do not assume any additional items will be included in your shipment. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE PICTURES WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times a display is used ONLY to show the item being sold is functional and working properly. In this case these displays ARE NOT included, this will be stated in our descriptions. If you have ANY questions feel free to send a message or call Max Marine Electronics Inc, Pompano Beach, Florida. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.



Additional information

Weight 200 lbs
Location

32D

SKU 177791
