Description
Manufacturer: Furuno
Model Number: TZTL12F DRS25a
Series: TZtouch TZtouch2
Condition: Used
Additional Notes:

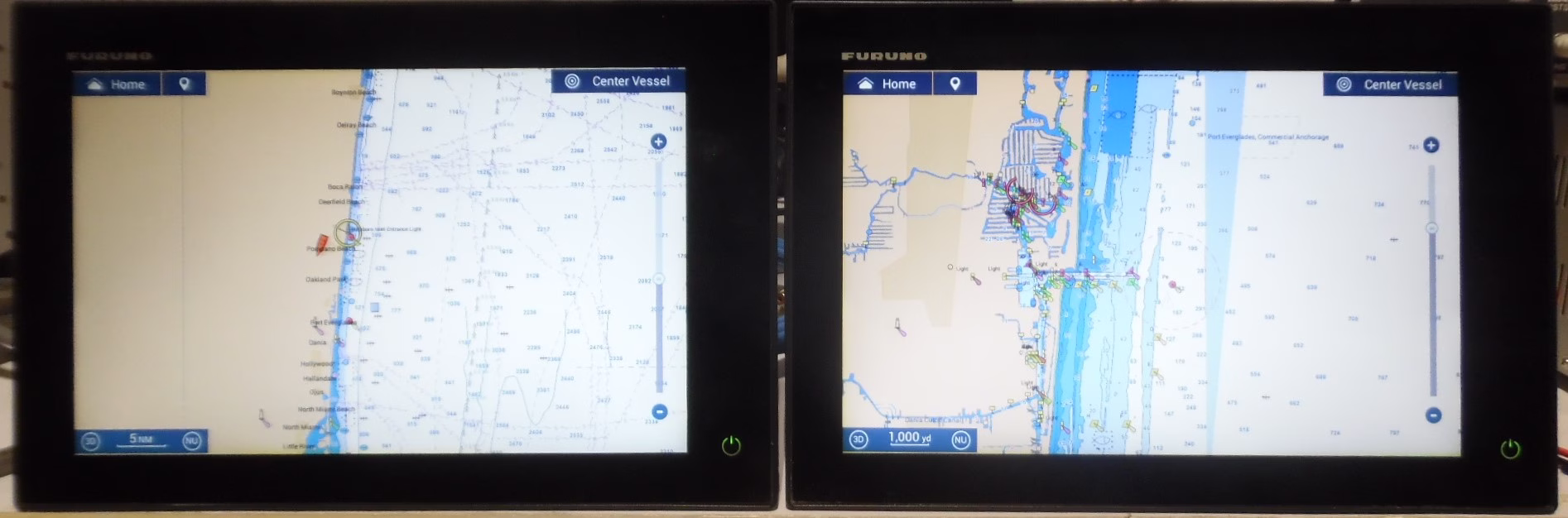

We were able to put together a Dual Furuno TZTL12F 12″ chartplotter/radar system.

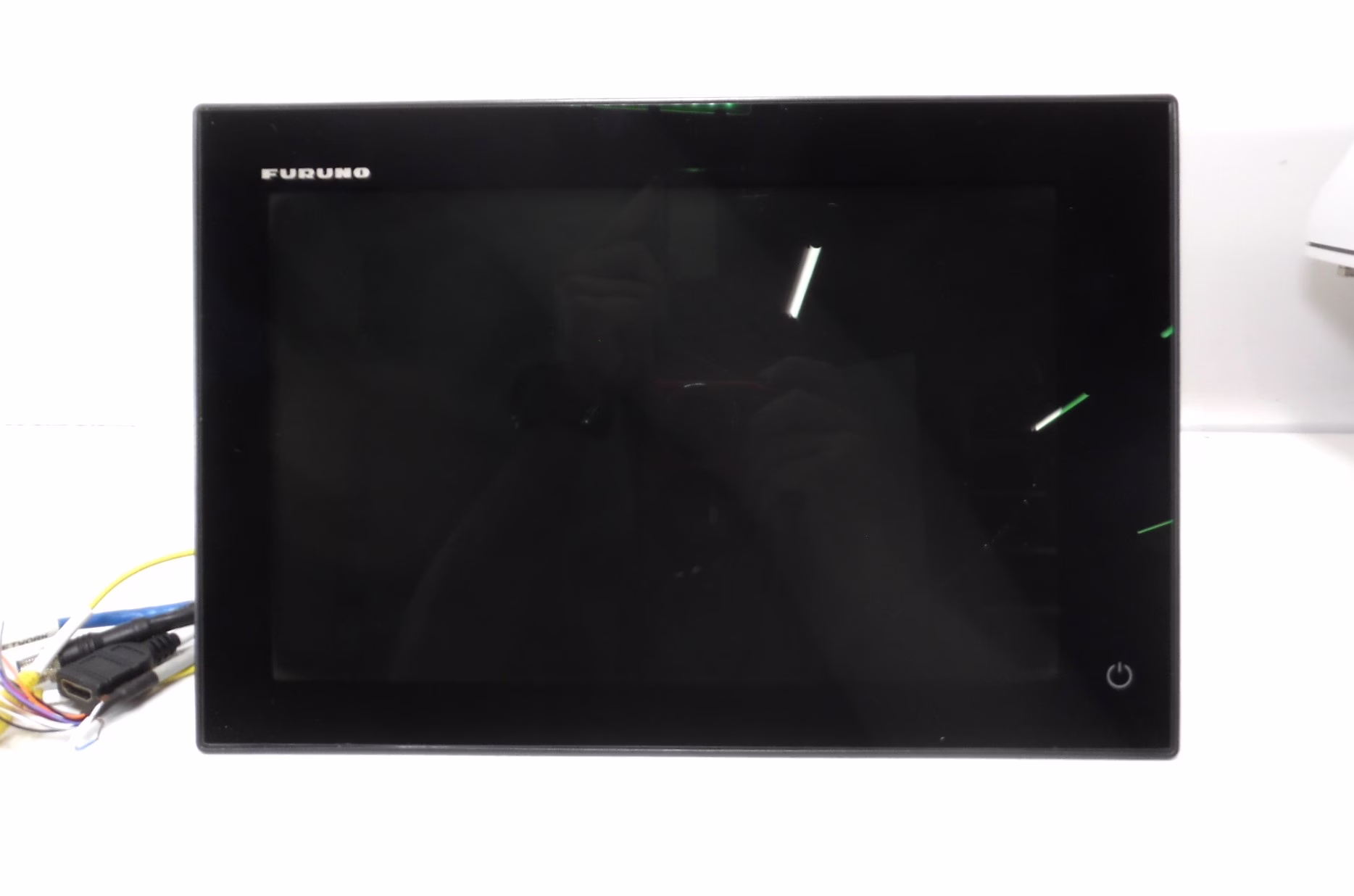

Both plotters are clean but they both have a yellow hue around the LCD which is easier to see once the units are powered off.
We paired these TZTL12Fs with a DRS25a open array radar.
These plotters have built in charts, if you need charts for a certain area, please let us know at time of sale. We have the ability to unlock charts from Furuno. This will be an additional fee for any charts that need to be unlocked.
PLEASE NOTE: This radar has the ability to unlock the ARPA function with the use of your TZTouch2 you just need to connect a heading sensor to the NMEA2000 backbone. Please refer to the MFD manual for further information on how to properly use ARPA. We might have some available for an additional fee.
If you desire to have a 6 ft Antenna instead of a 4 ft on this Radar; we can check if any are available and replace it for you at NO ADDITIONAL COST! Please contact us before purchasing this listing.
We did not include a GPS antenna with this system because both of these MFDs have an internal GPS antenna. Please let us know if you need an external GPS antenna.
Both of these MFDs have a built-in fishfinder which is a dual-frequency (50/200kHz), 600W/1kW power output sounder. NO TRANSDUCERS ARE INCLUDED.
If you want to add a 1 kW chirp transducer one can be added with the addition of a DFF1-UHD (not included). One can be added for an additional price.
What’s Included:

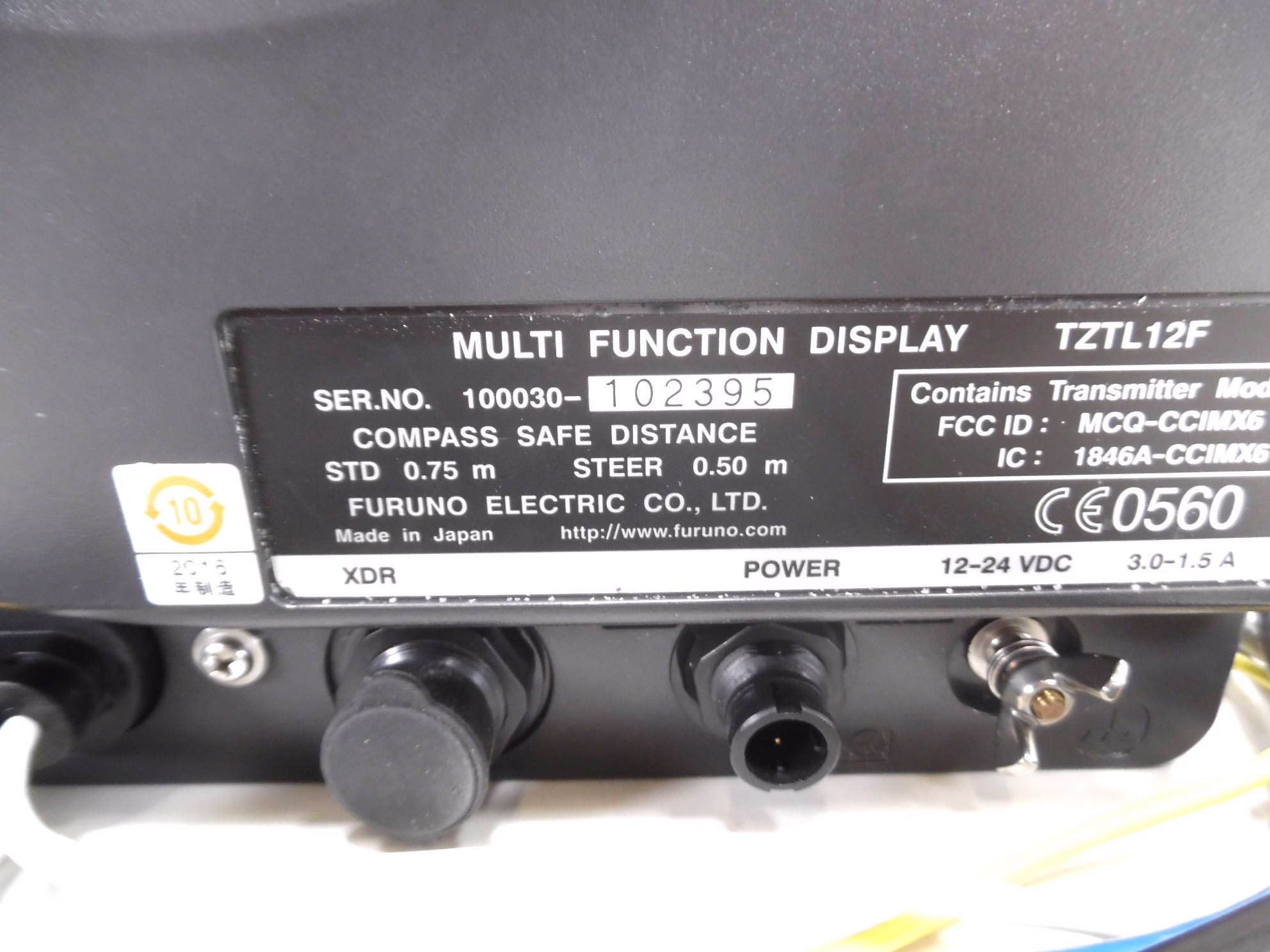

- TZTL12F – (S/N: 100030-102395) comes with flush mount brackets, suncover, network, and power cables. Yellow hue around LCD, easier to see once unit is powered off. Updated to revison 8.01
- TZTL12F – (S/N: 1000-3010-4712 ) comes with flush mount brackets, suncover, network, and power cables. Yellow hue around LCD, easier to see once unit is powered off. Updated to revison 8.01

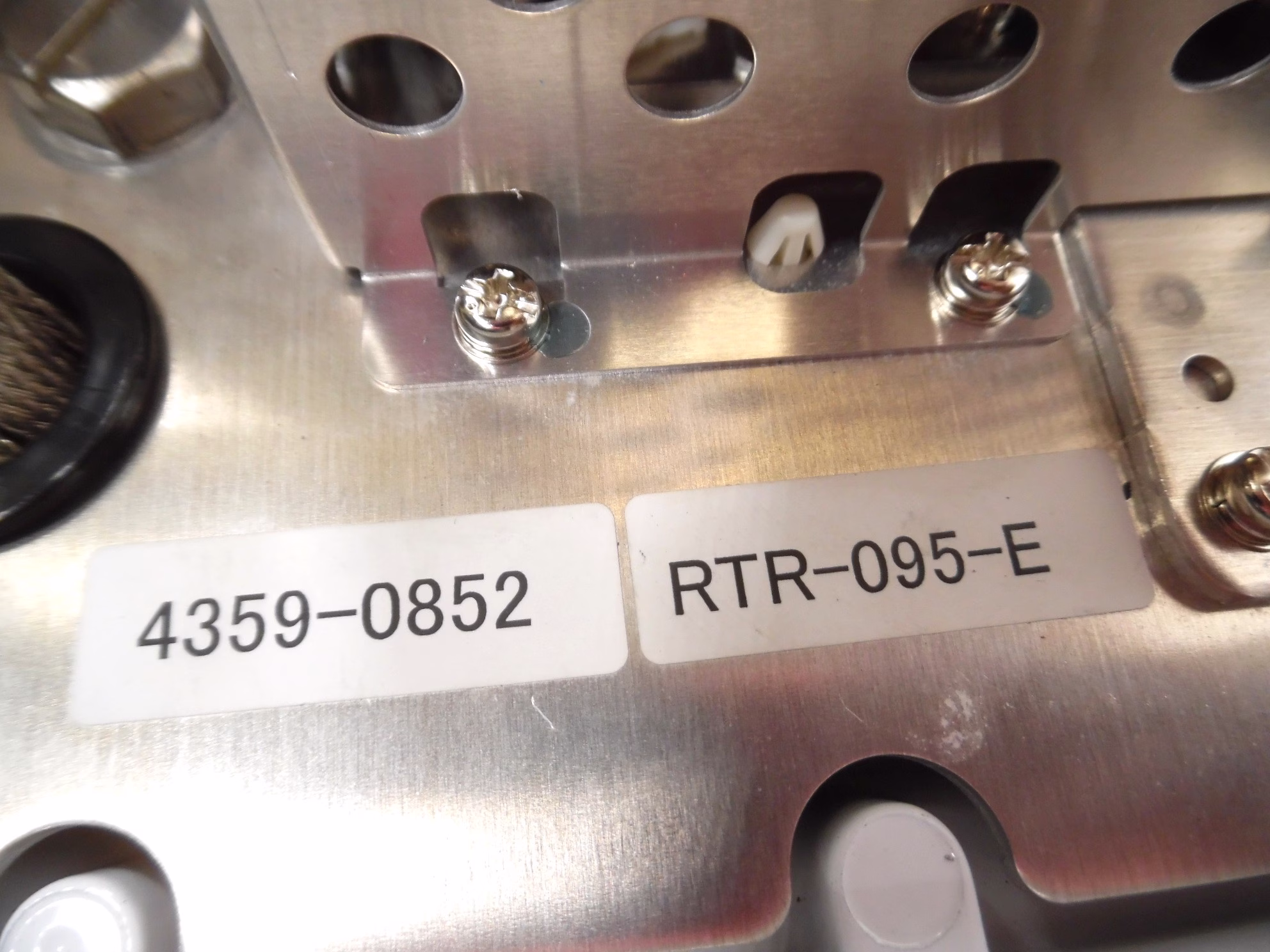

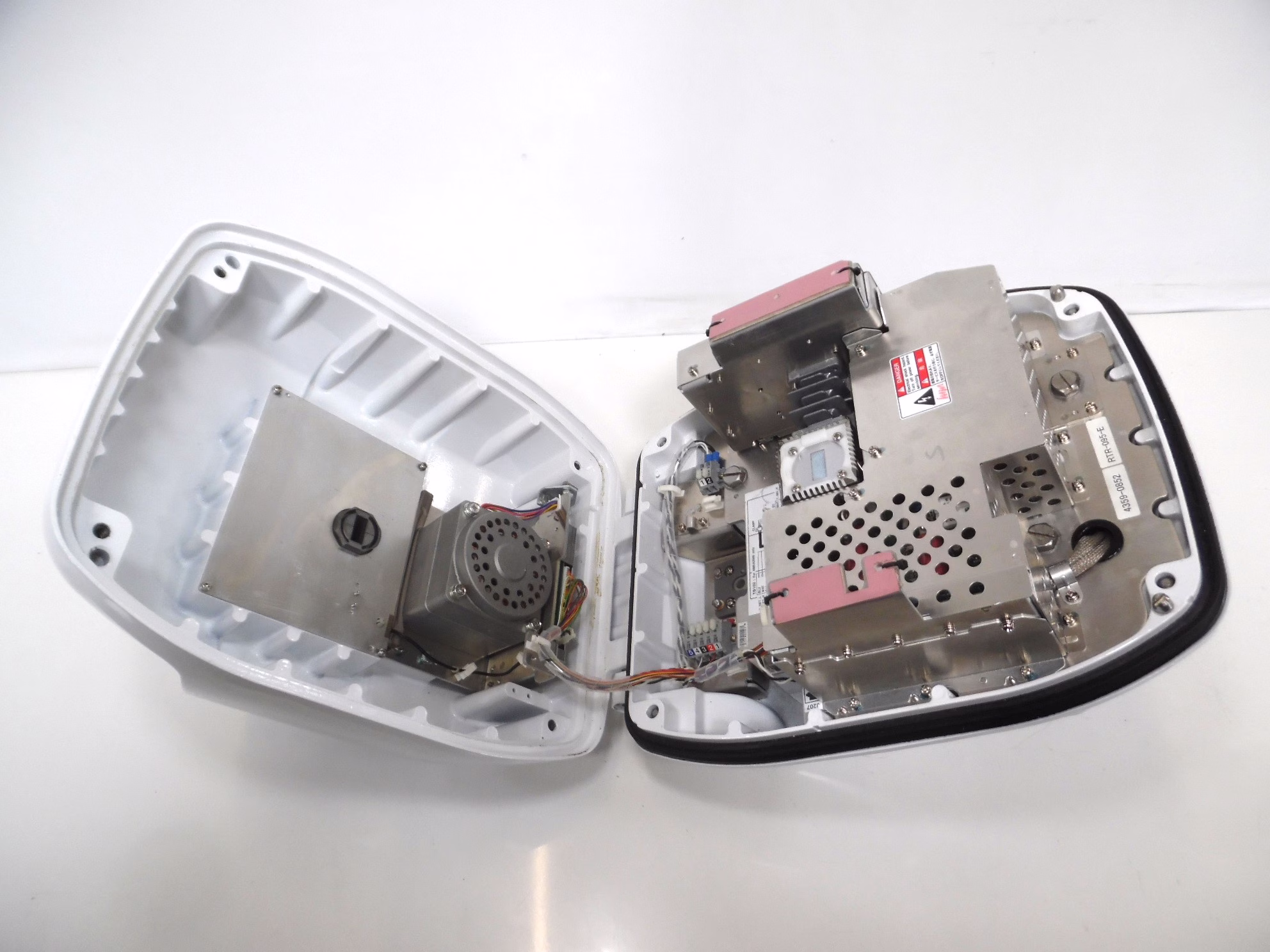

- DRS25a – excellent used condition, we had the gear box professionally powder coated.
- 6 Foot Array – minor scuffs and scratches
- Interconnect Cable – This cable was created in-house due to over 6 months of lead time on these cables from Furuno. It is a suitable replacement that uses quality Turck, Manhattan Wire, and Delfingen components that is as good if not better than the factory. The only differences from factory cable are that instead of being a “siamese” cable with no protection, ours is two individual wires in a durable cable wrap, and with our cable, a “Green” wire is used in place of the “Blue” wire.
- HUB-101 – power cable
- NMEA2000 Backbone Kit – x4 T’s, x2 1M drop cable, power cable, x2 terminators. These are the “Grey” Garmin Ts
Compatible Parts: TZtouch2, NMEA2000
Dimensions (L x W x H): 60 x 60 x 60 in, Weight: 120 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
