Description
Manufacturer: Airmar
Model Number: DT800
Series: Smart Sensor
Condition: Used

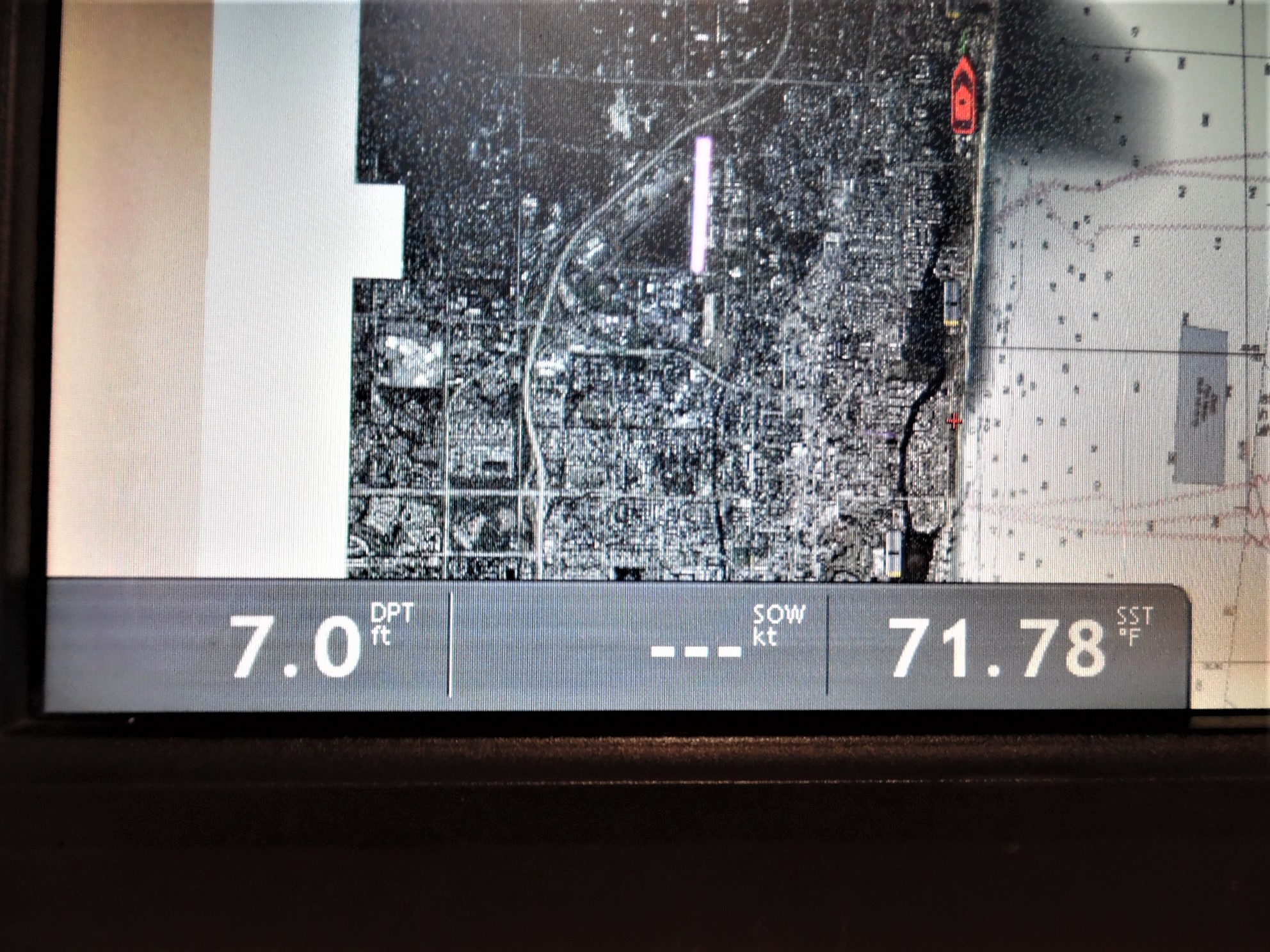

Additional Notes: This DT800 smart sensor will output both Depth and Sea Temperature through NMEA0183 to any device from any brand capable of receiving NMEA0183 information.

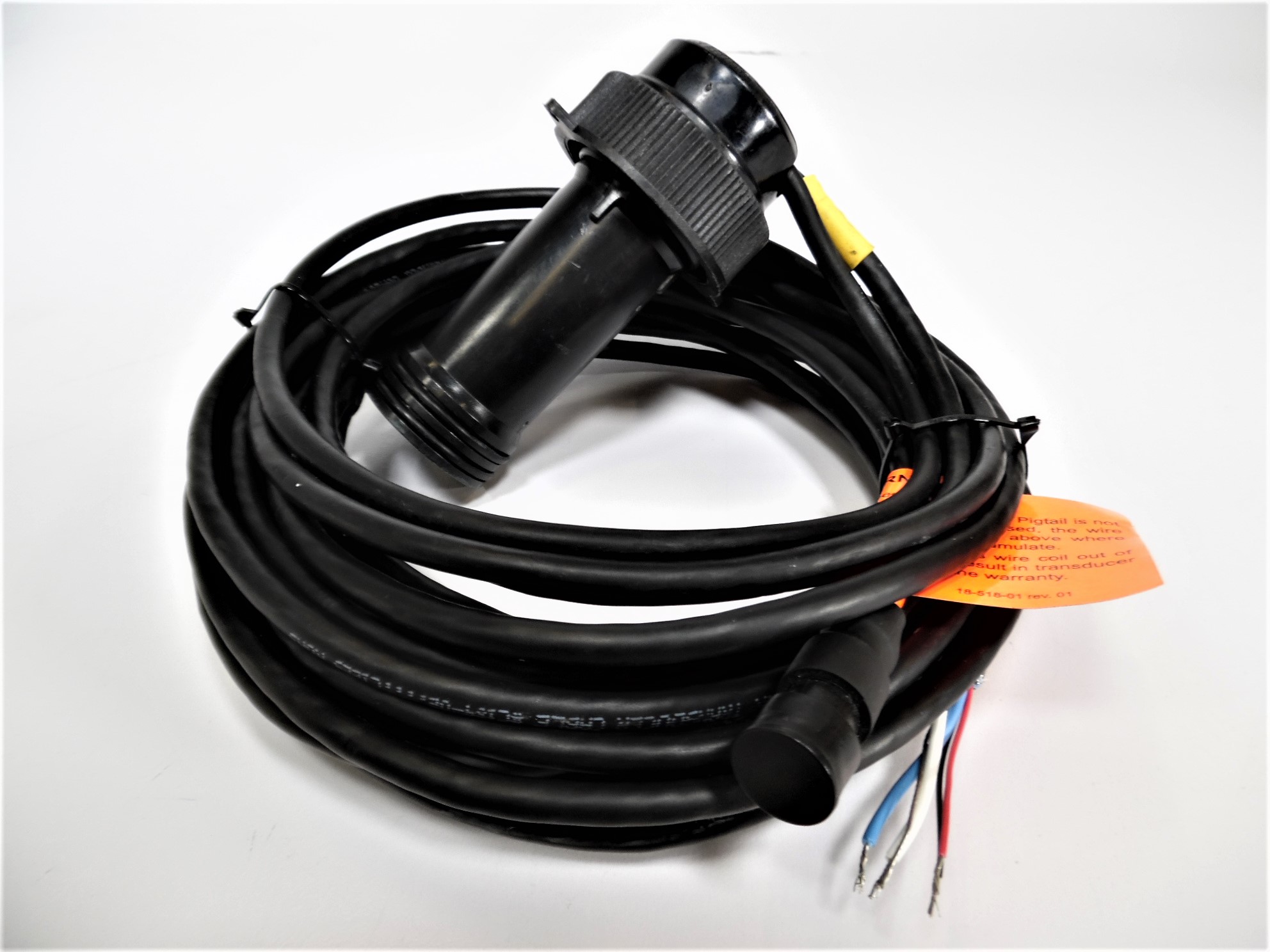

The unit was originally for Furuno units, which is why there is an extra cable and 6-pin connector (this cable is used as an analog speed input if you have a separate speed transducer, most often, this optional input is not used). The other wire that originally had a 7-pin end on it was cut, but there is plenty of wire, over 23′. Red and black are power wires, which are to be fed 12vdc, and the blue and white wires are data, which connect to your compatible device.

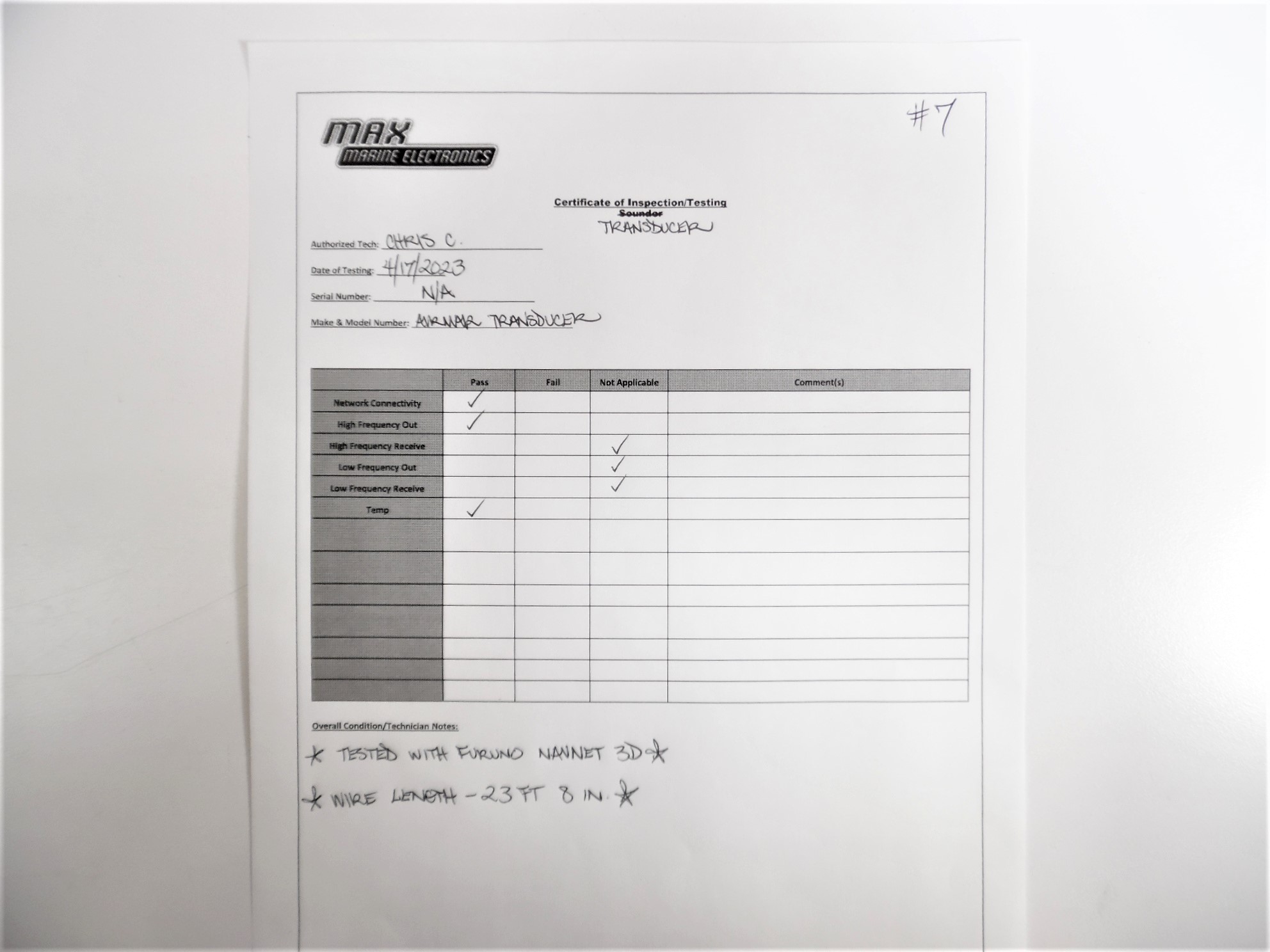

The sensor has been fully tested, test report attached. We are including a plastic housing and blanking plug. There is about 23-1/2′ of cable attached, which can be easily spliced and extended to suit your installation. The transducer operates at either 235khz or 170khz frequency, we are unsure which, as the tag is missing, but both frequencies will not interfere with 50 or 200 khz devices.

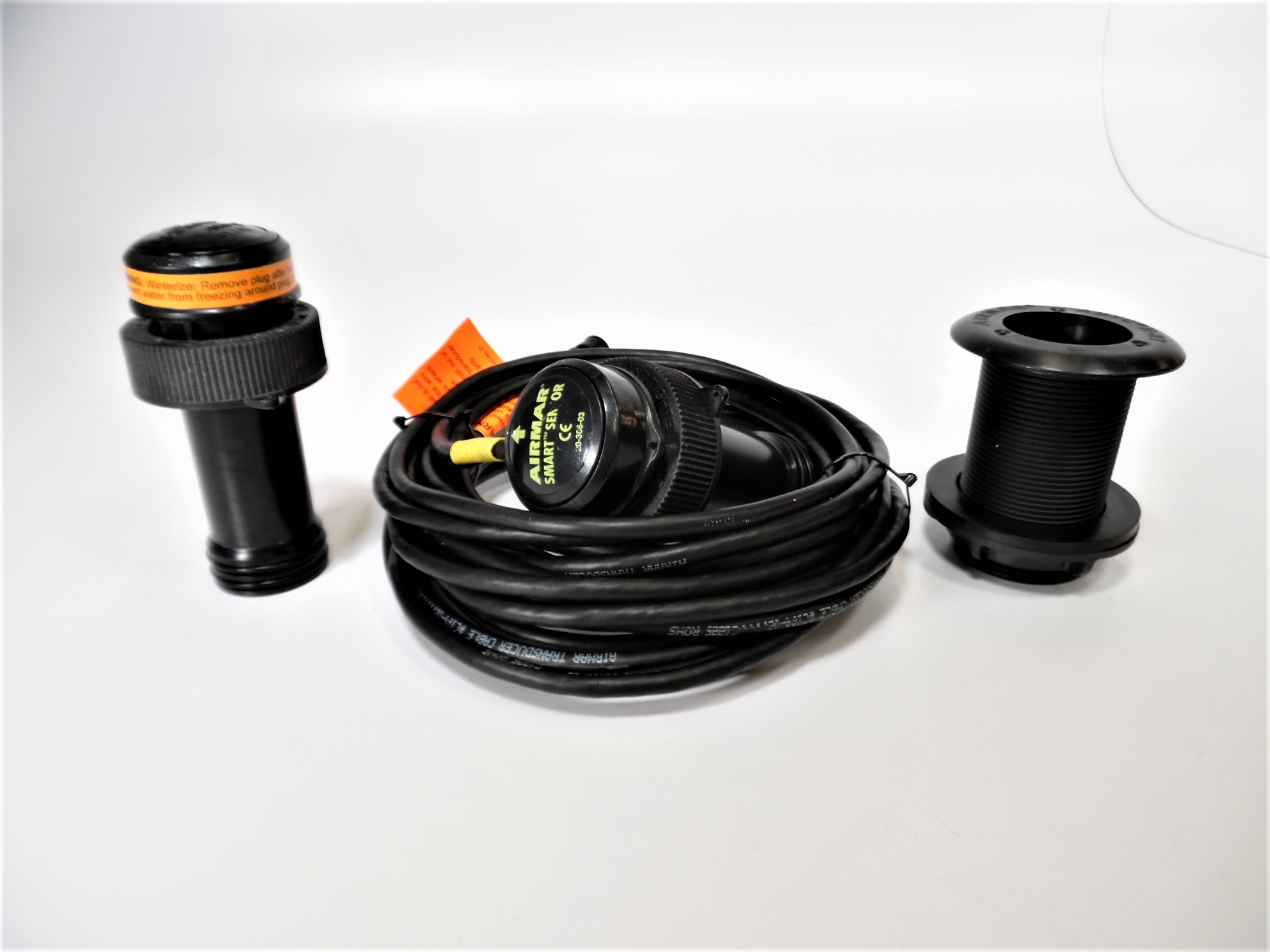

What’s Included:

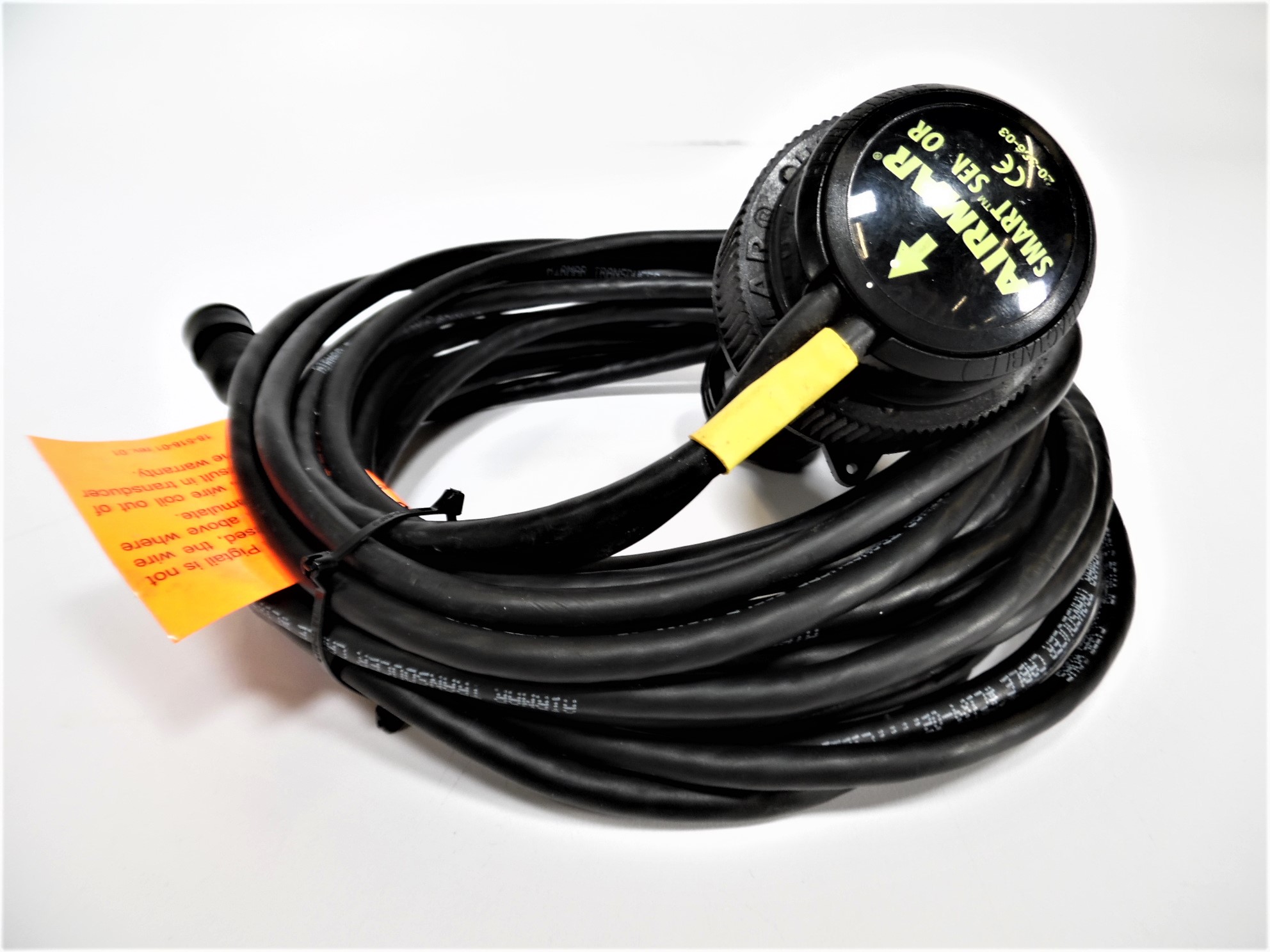

- Airmar DT800 Smart Sensor – NMEA0183

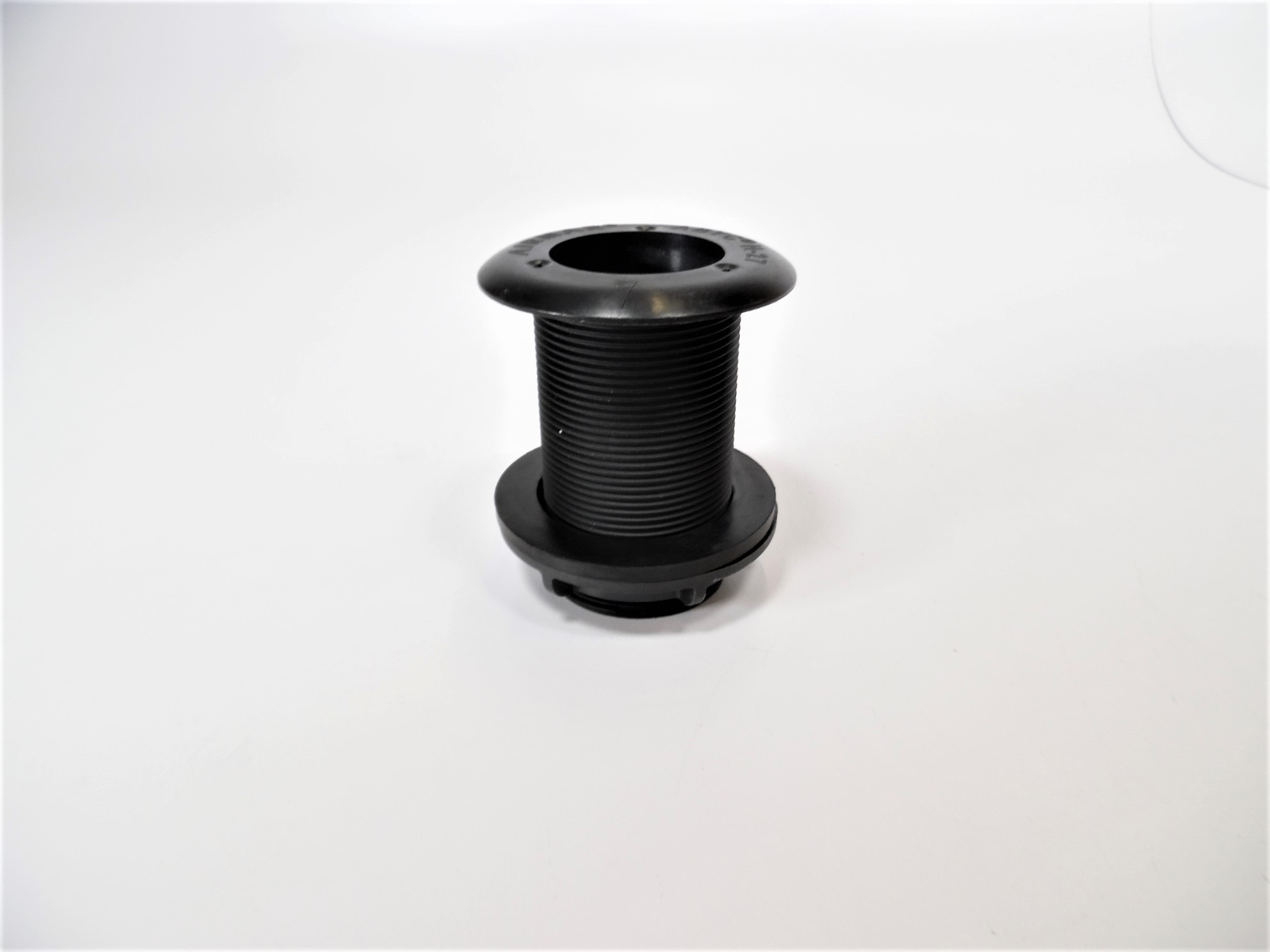

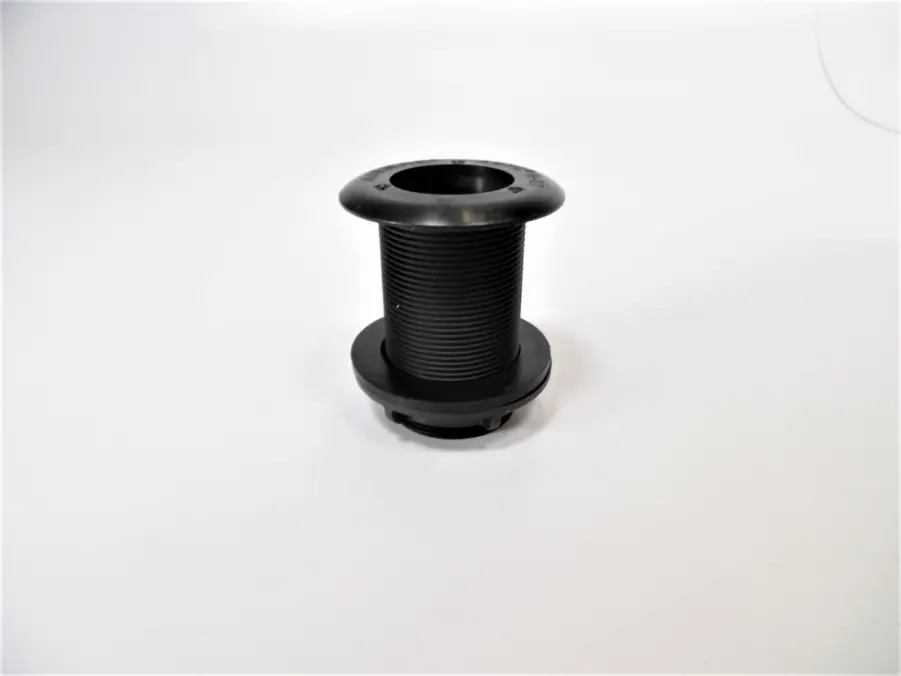

- Plastic Housing Kit

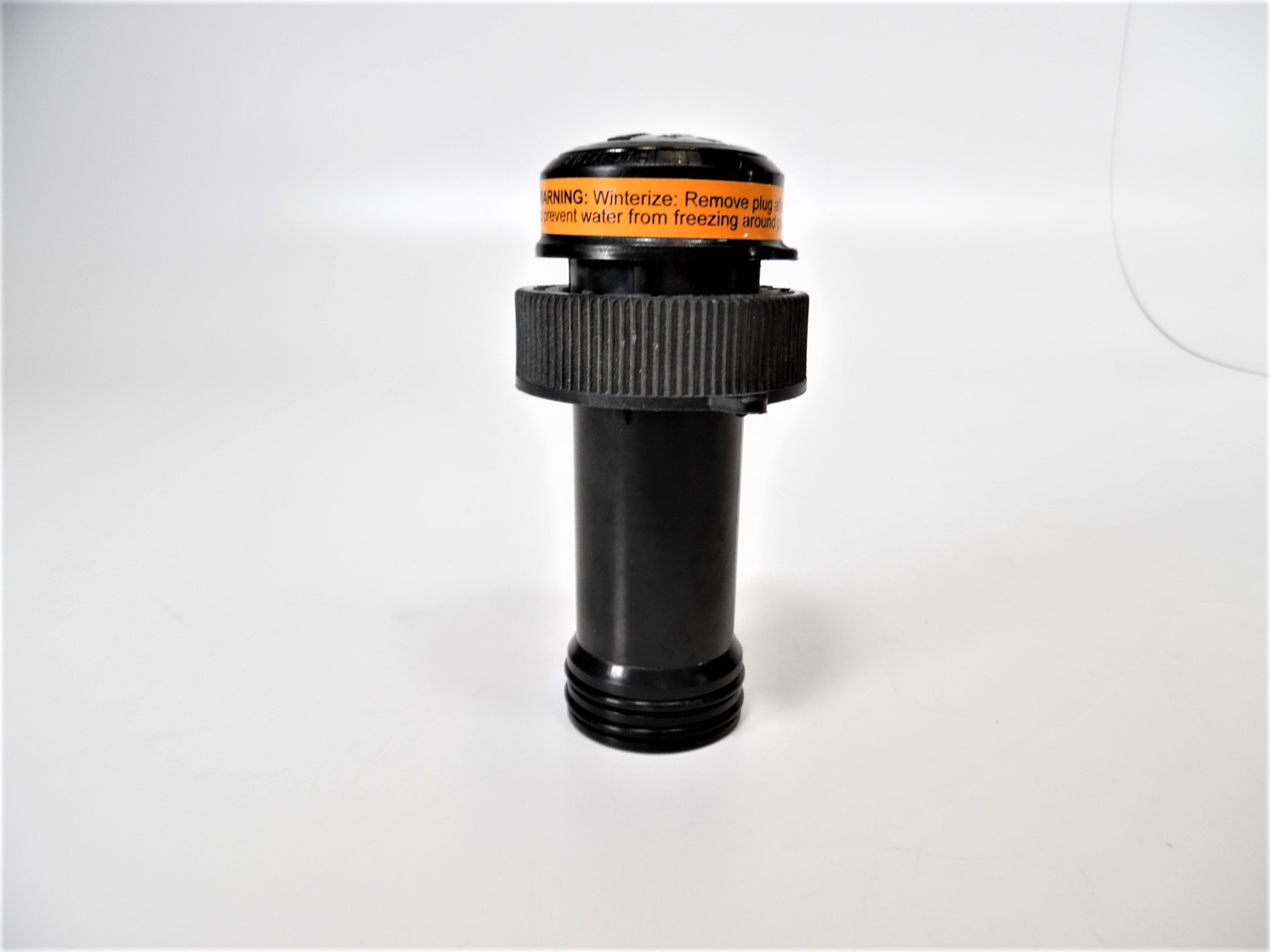

- Blanking Plug
Compatible Parts: Any device capable of receiving NMEA0183 Depth and Temp Info.
Dimensions (L x W x H): 10 x 10 x 5 in, Weight: 3.25 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
