This system is as complete as they come. This system would have been pushing $30,000 new and is in excellent working condition. We are offering this as a complete ready-to-install Radar, Chart, and Sounder that comes with EVERYTHING needed – cables, etc., to install.  Chart Card, Heading Sensor, GPS antenna, or Transducer is not included.

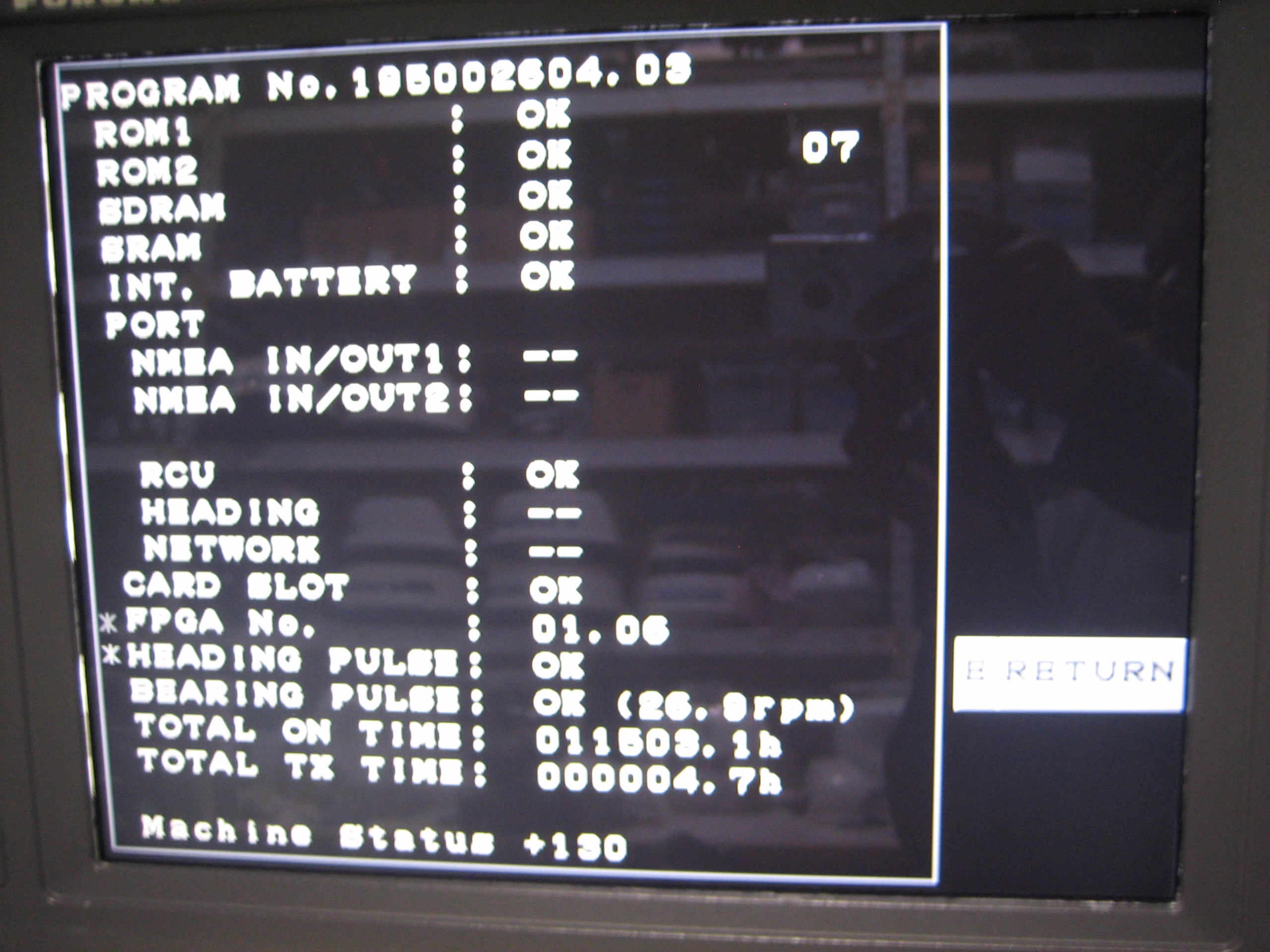

This radar system is a 12kw, 72 miles, 6-foot open array radar system that CAN FIND BIRDS. The unit uses C-MAP Cards, none are included. We have upgraded it to the latest software version for optimal performance. The radar picks up targets very well, both near and far. This system was bench tested.

The VX2 black box shares the same user interface as the 10.4″ and 7″ VX2 units, but allows for a larger screen to be used and has a composite video in Port for the camera, etc.

By default, we set the sounder module (ETR-6/10N) to 600W. Please let us know if you need that setting changed to 1kw to accommodate your transducer application.

There are NO transducers, Heading Sensors, GPS antenna, or Chart Cards included in this listing, you will have to purchase separately.   We have these available, please let us know what you are looking for and we can direct you accordingly.

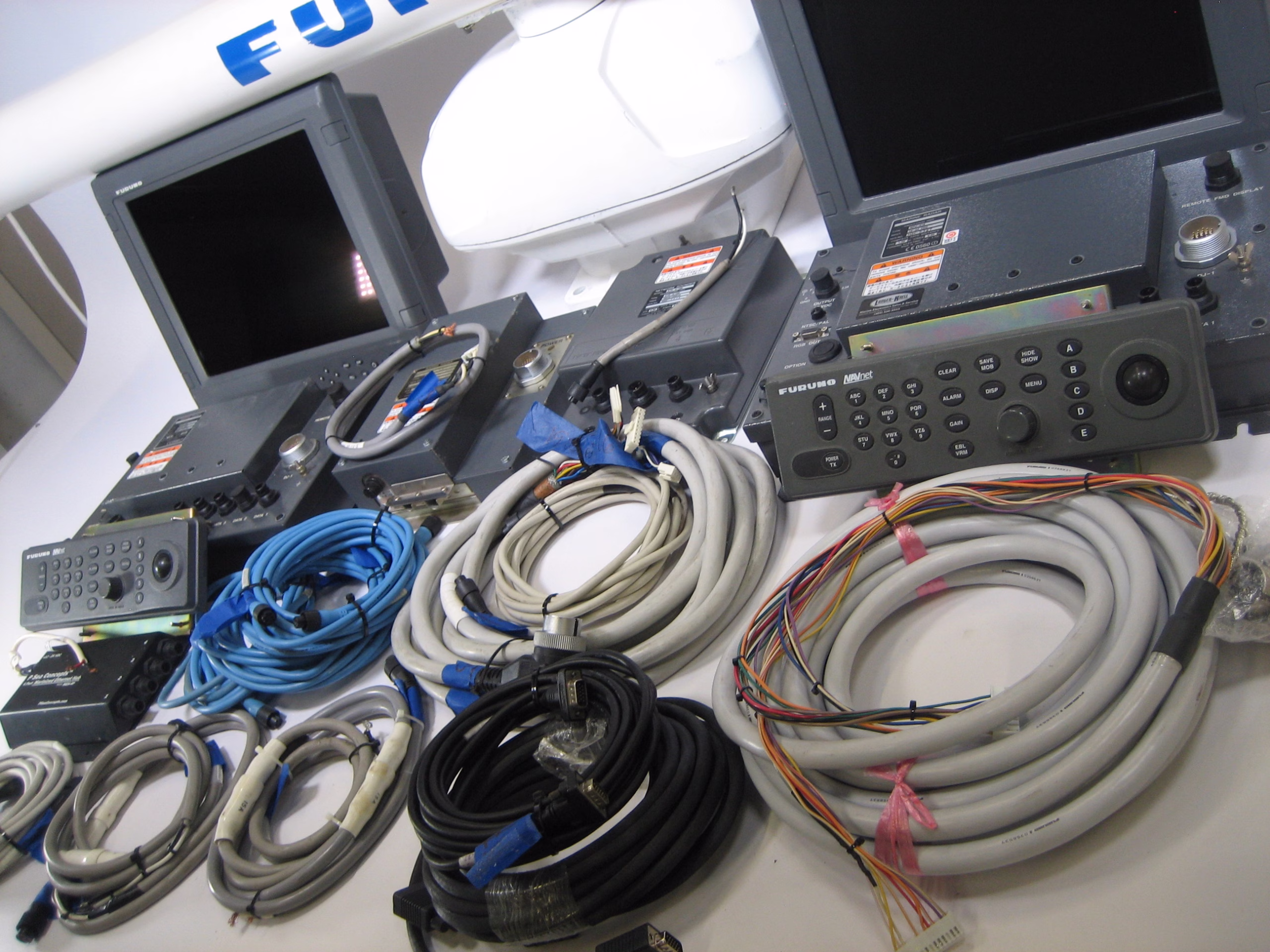

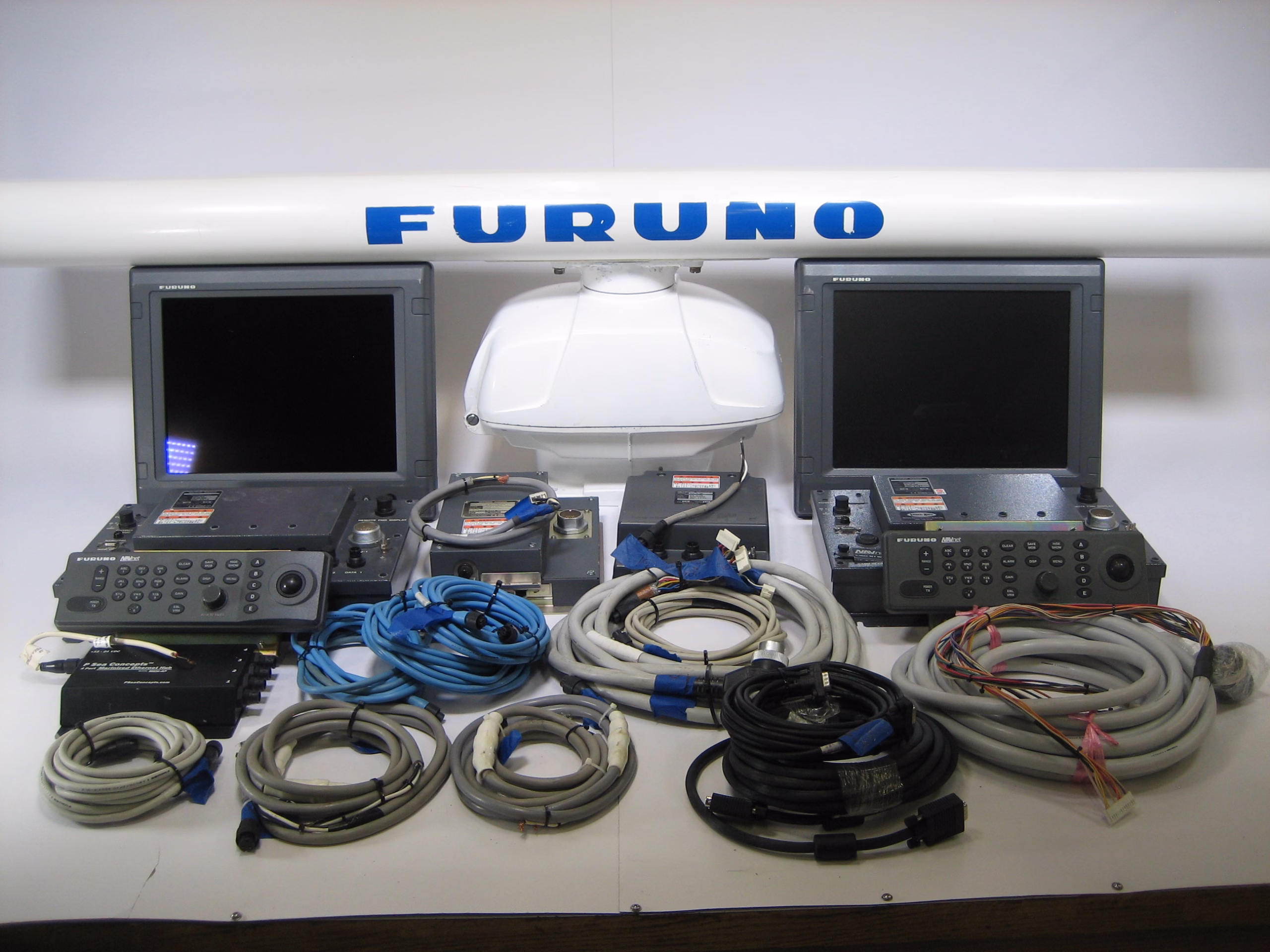

This includes:

• 2x 1954CBB Processors – RPU-015 (C-MAP)
• 2x 3Pin Power cables for the processor (3ft,8ft), 2x Network Cables 6Pin – 6Pin (5m)
• Ethernet Switch 12Vdc with power cable  (1ft).
• 2x RCU-017 control keypads
• 2x Interconnect cables(controller cables)  from processors to keypads  (12ft).

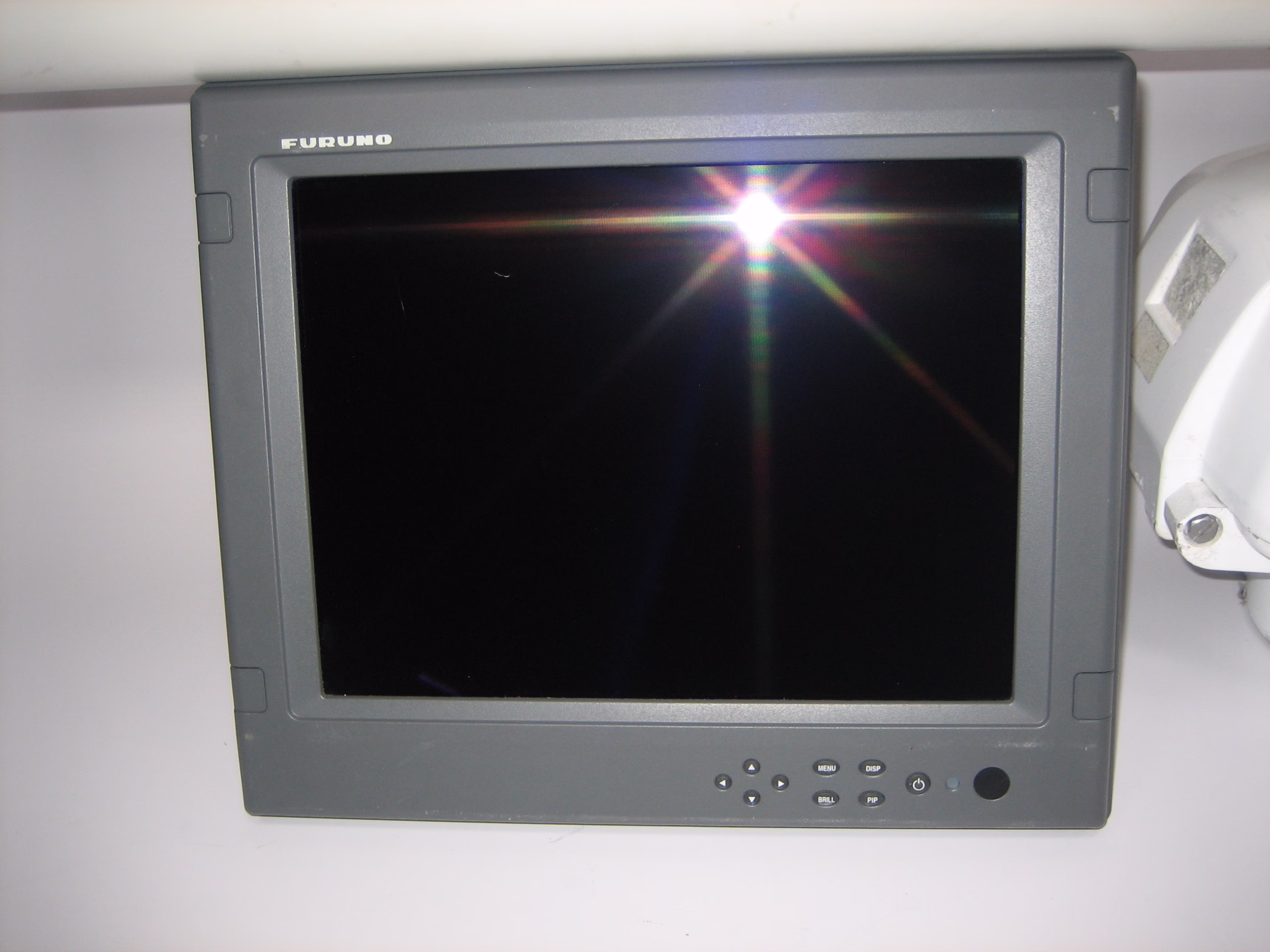

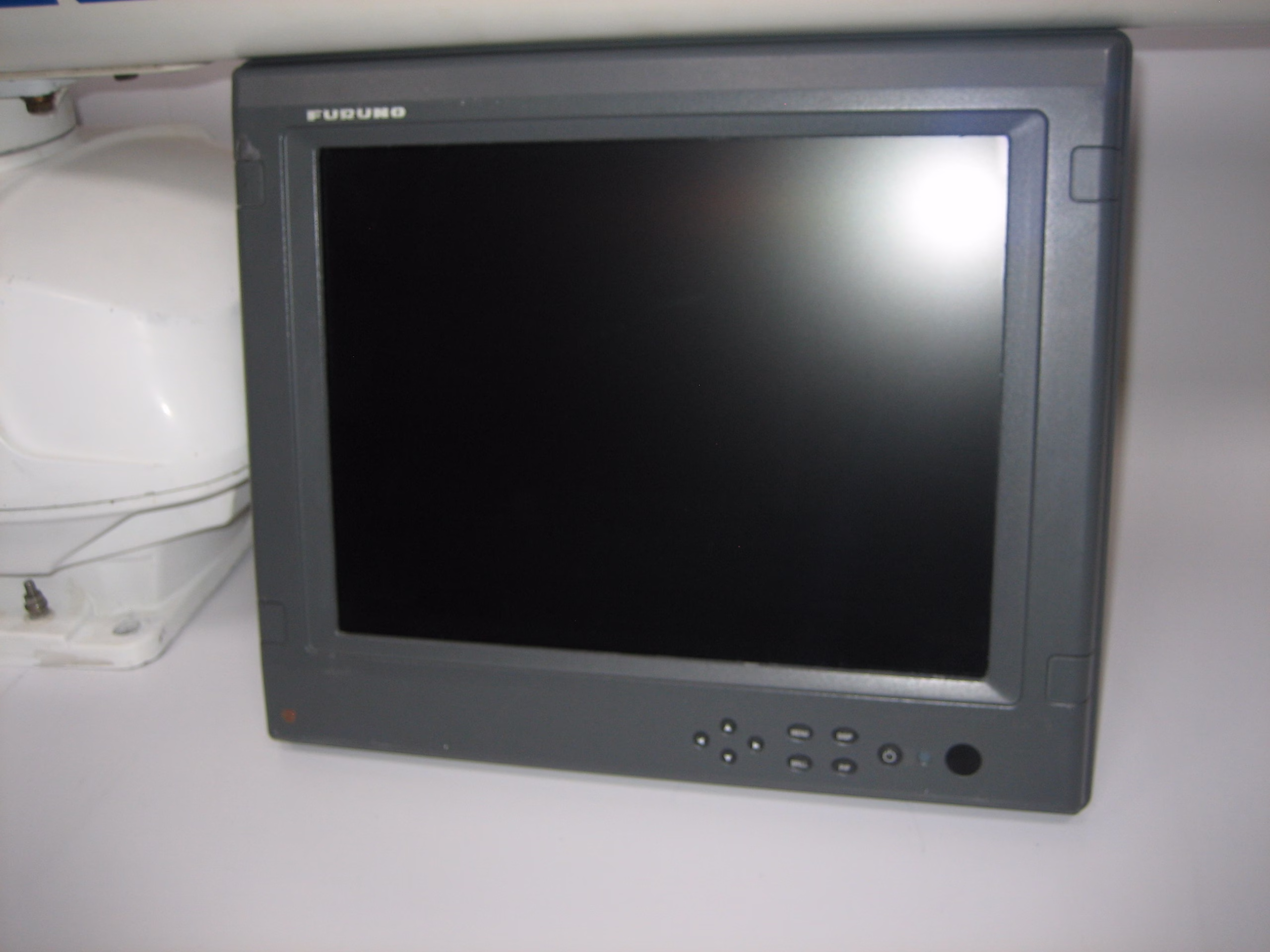

• 2x MU-155c 15″ –  Display 12/24 volts Light Grey
• 2x VGA Cables(25ft/15ft) , 2x Power Cables for monitors 3pin  (3ft,3ft)

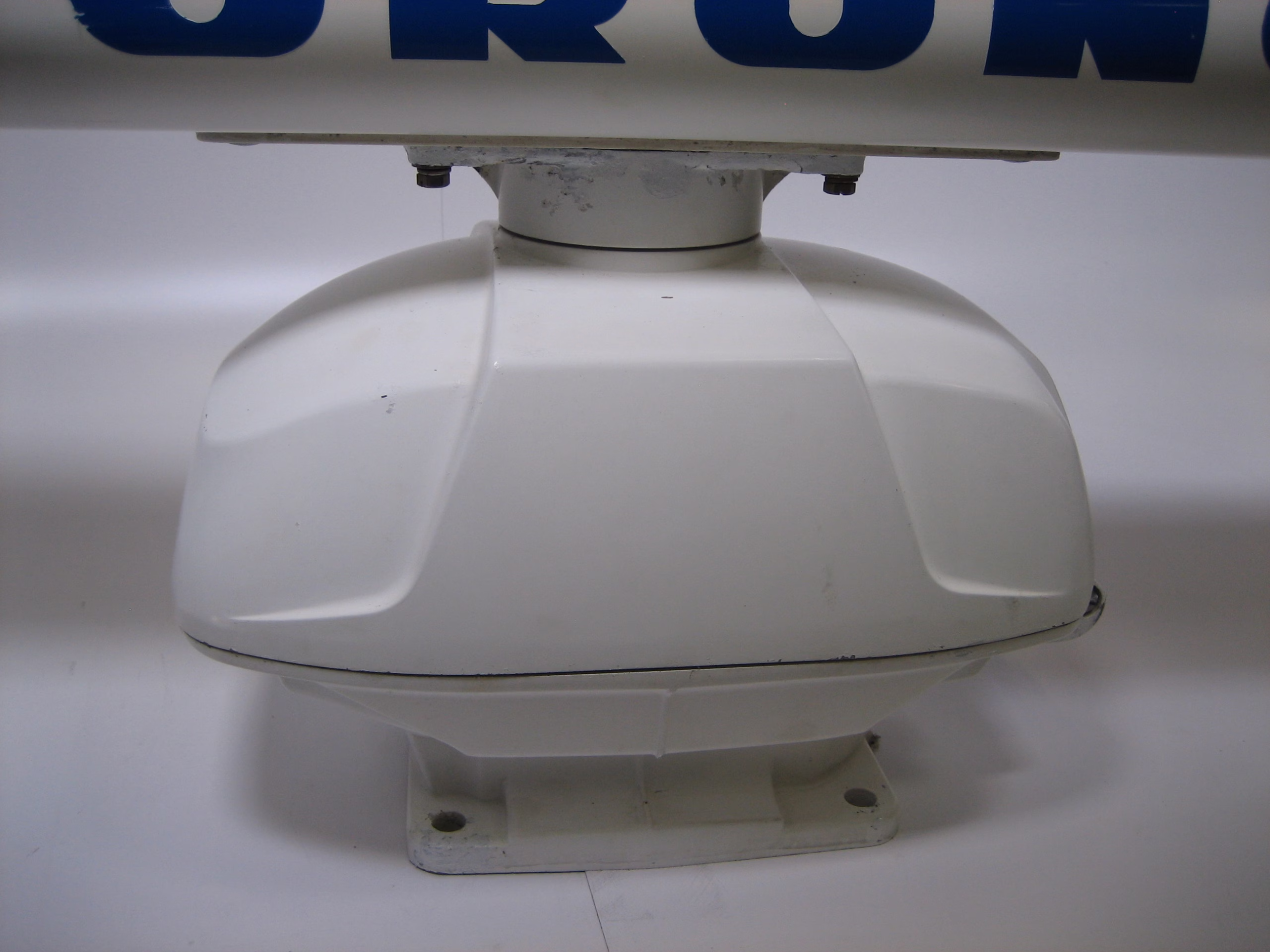

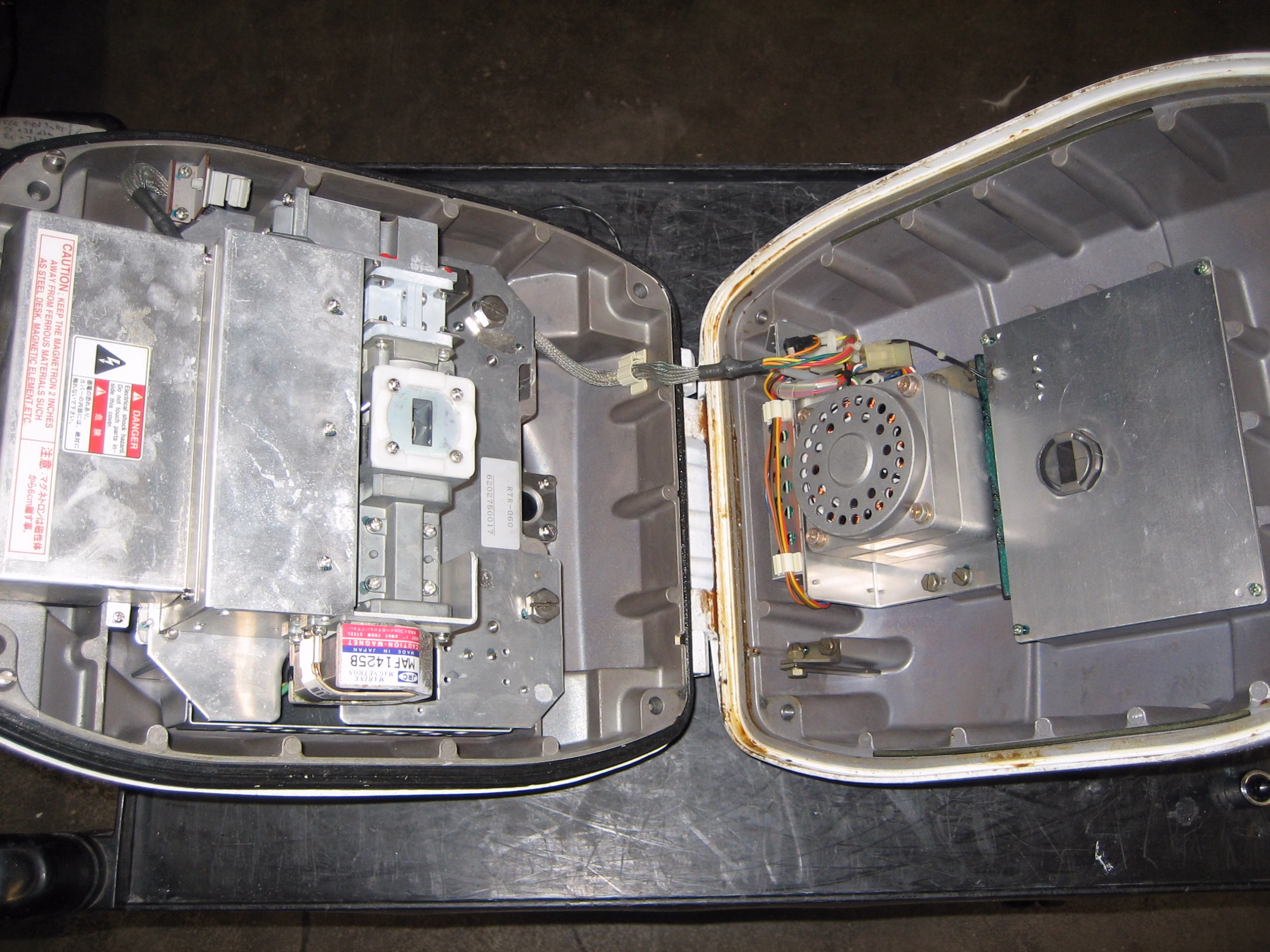

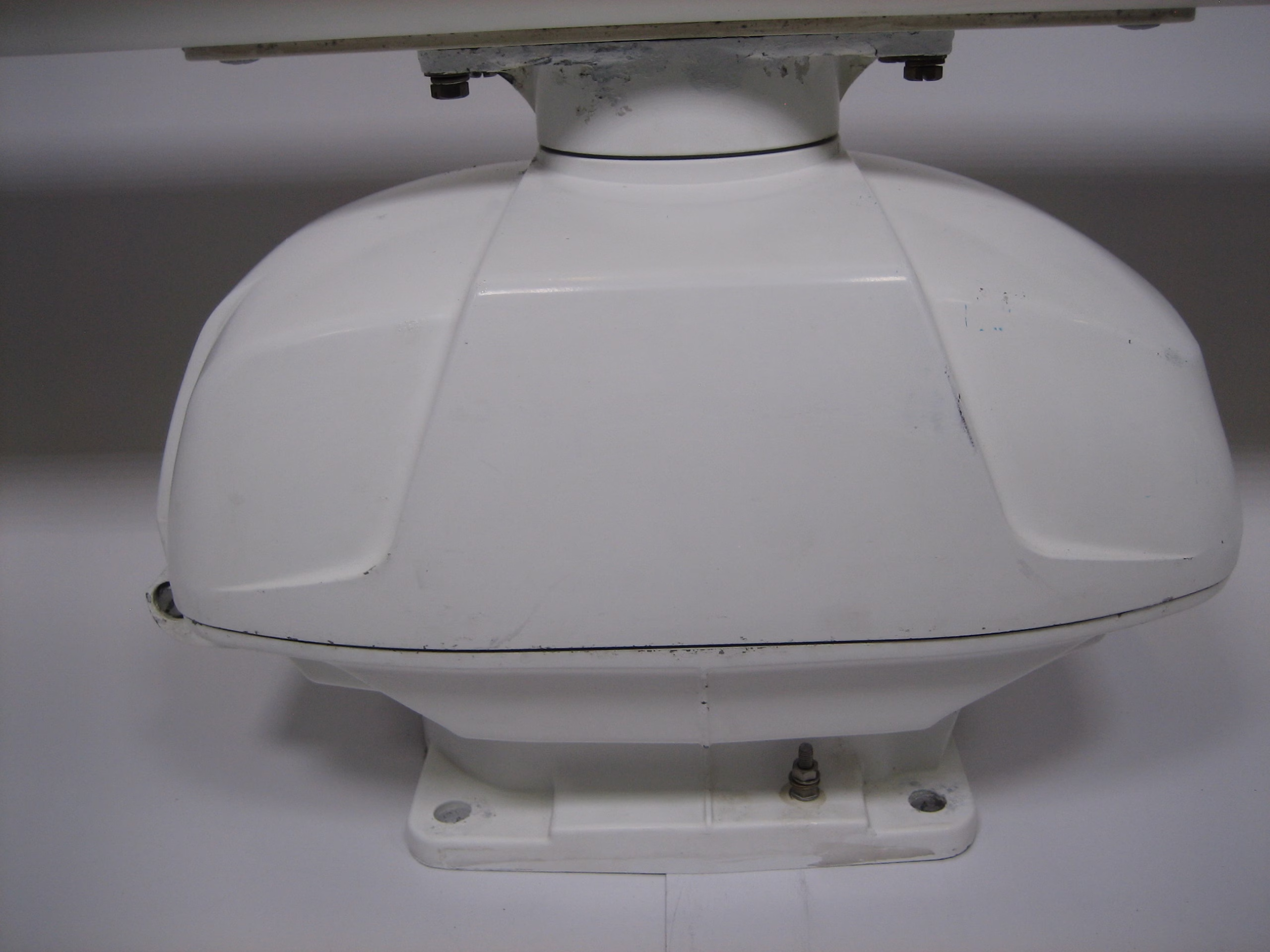

• RSB-0072-060 12kw Open Array Radar w/ 6′ Antenna – Good condition
• Brand NEW Interconnect Cable (10m) from Pedestal (Radar) to the power supply
• PSU-005 12kw Radar Power Supply – comes with  Power Cable (1ft) & Interconnect Cable (16ft from power supply to RPU-015)
• ETR-6/10N Sounder Module with 3Pin Power Cable (1ft) and Network cable – 6Pin (5m)

If you desire to have a 4ft Antenna instead of a 6ft on this Radar; we can check if any are available and replace it for you at NO ADDITIONAL COST! Please contact us before purchasing this listing.

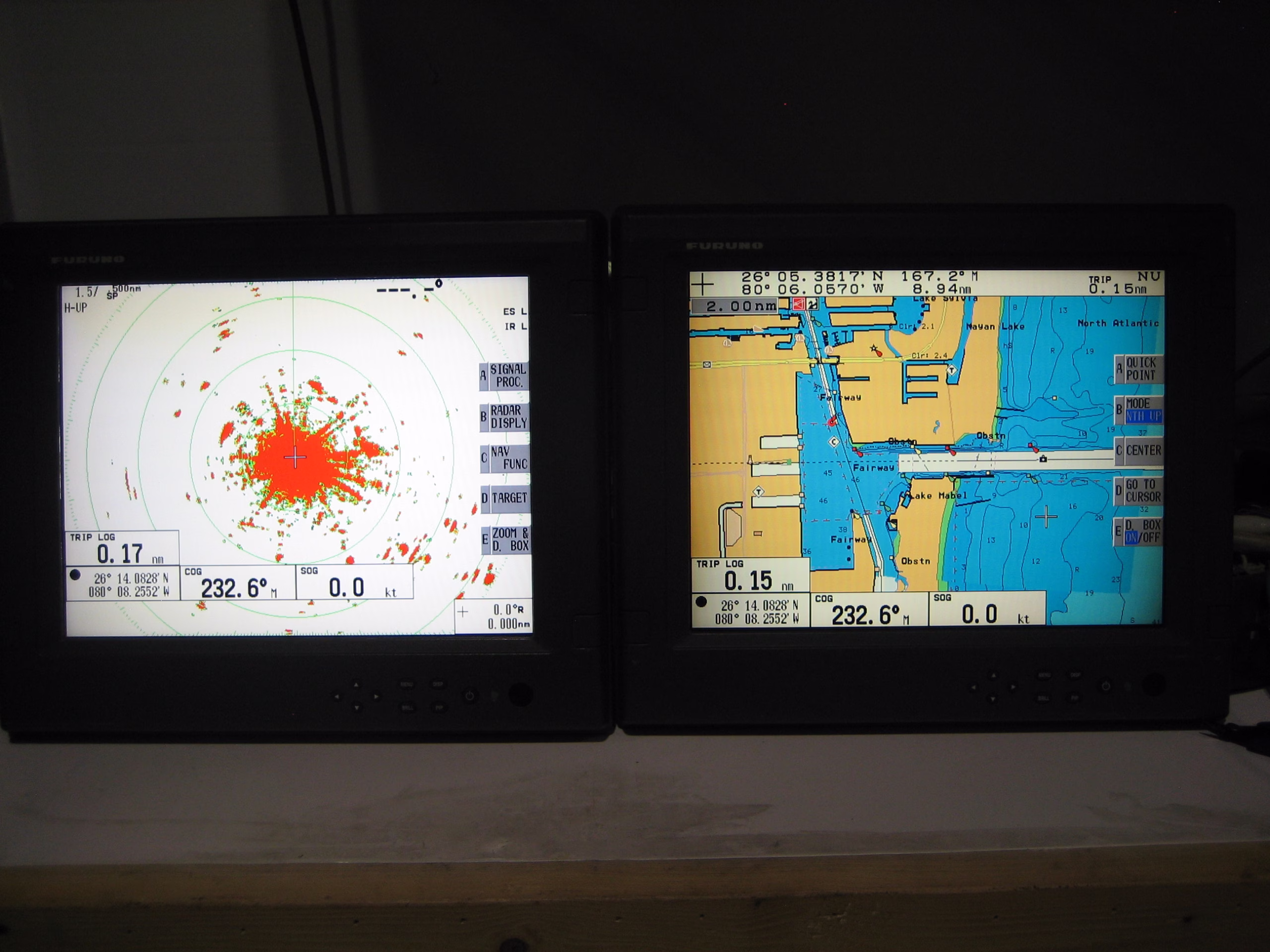

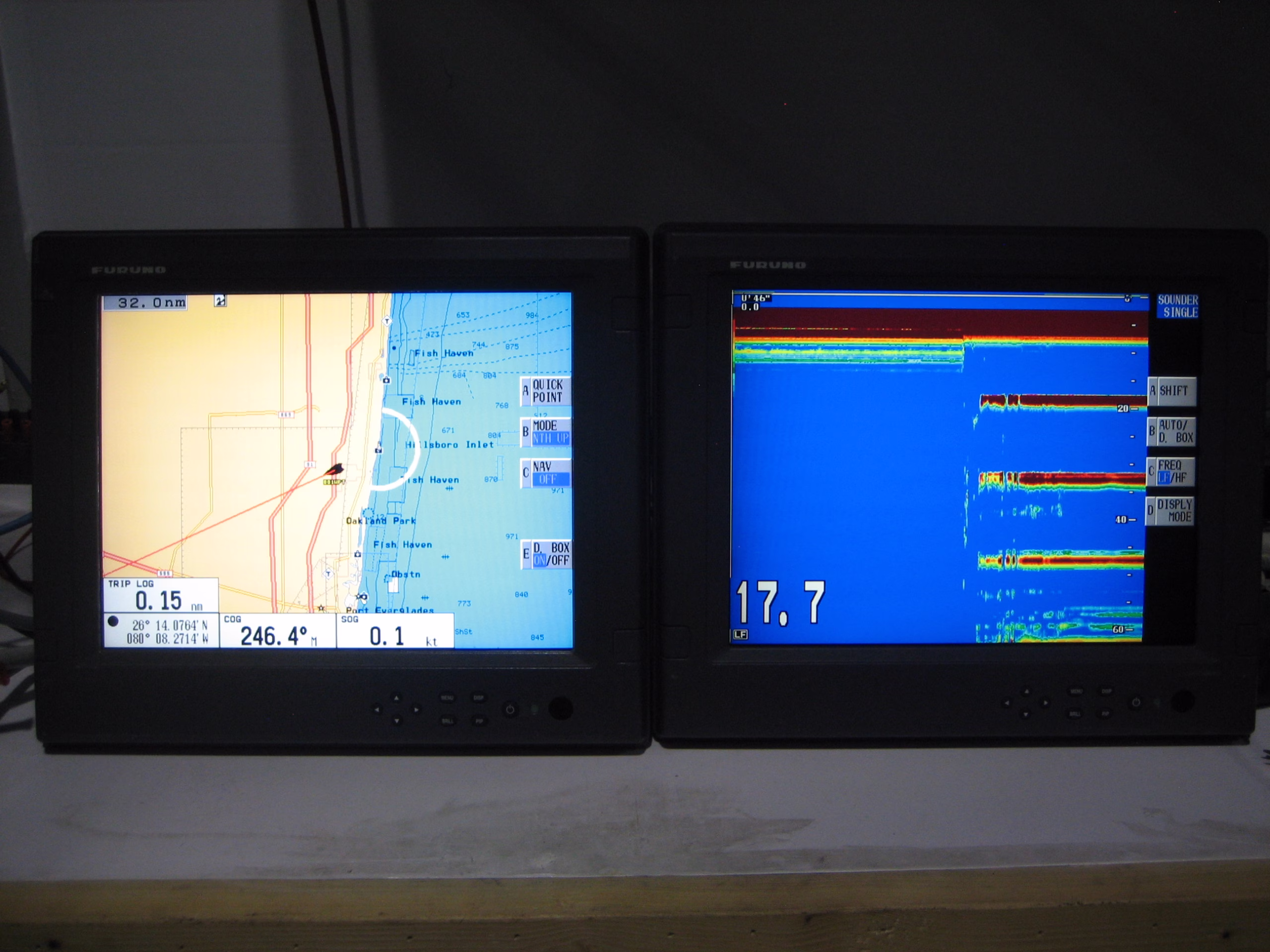

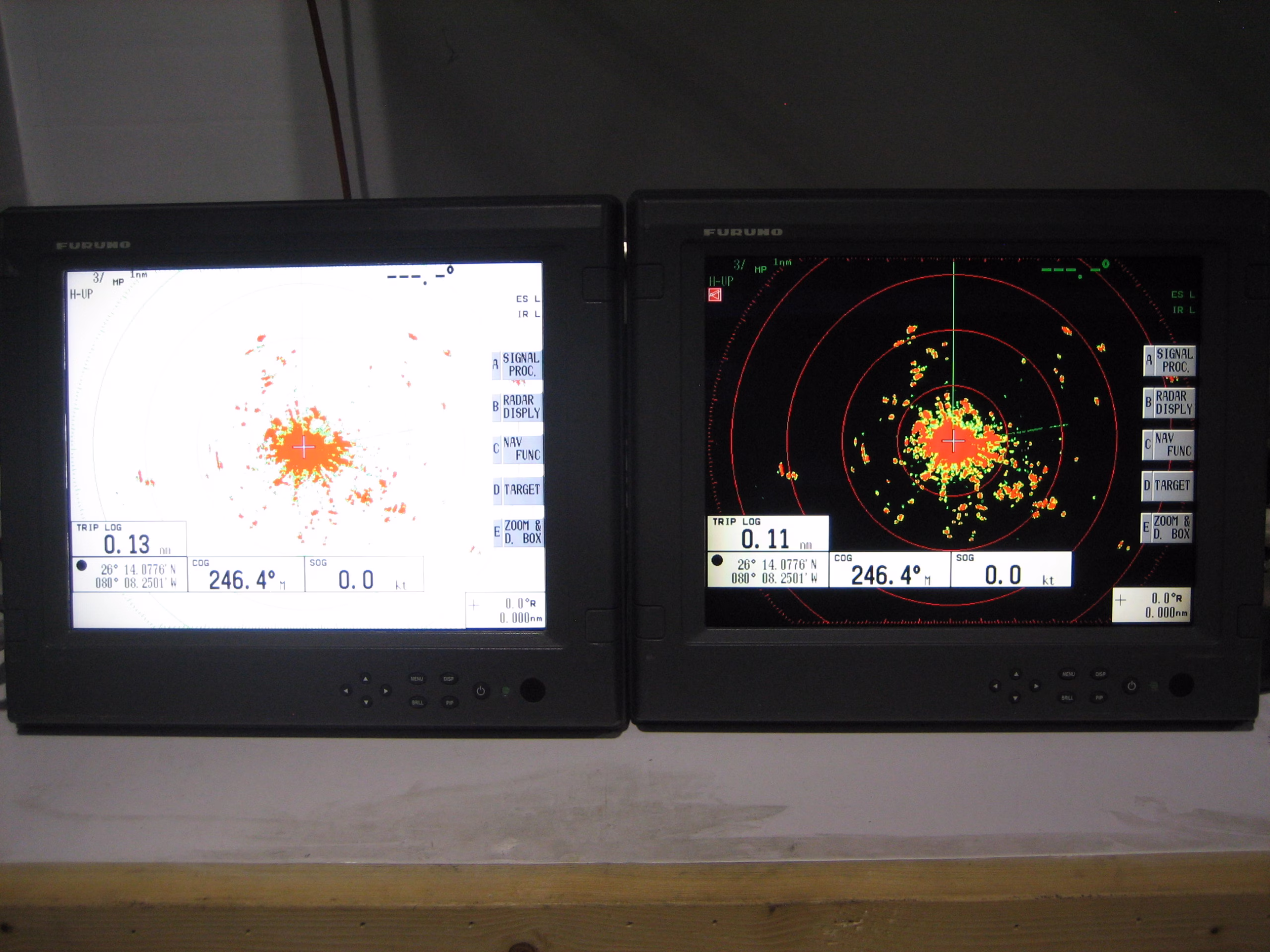

As you can see, the system is fully functional – picks up targets well.

90 Days Warranty from date of receipt.

Free shipping to contiguous US only

Thanks for looking!
